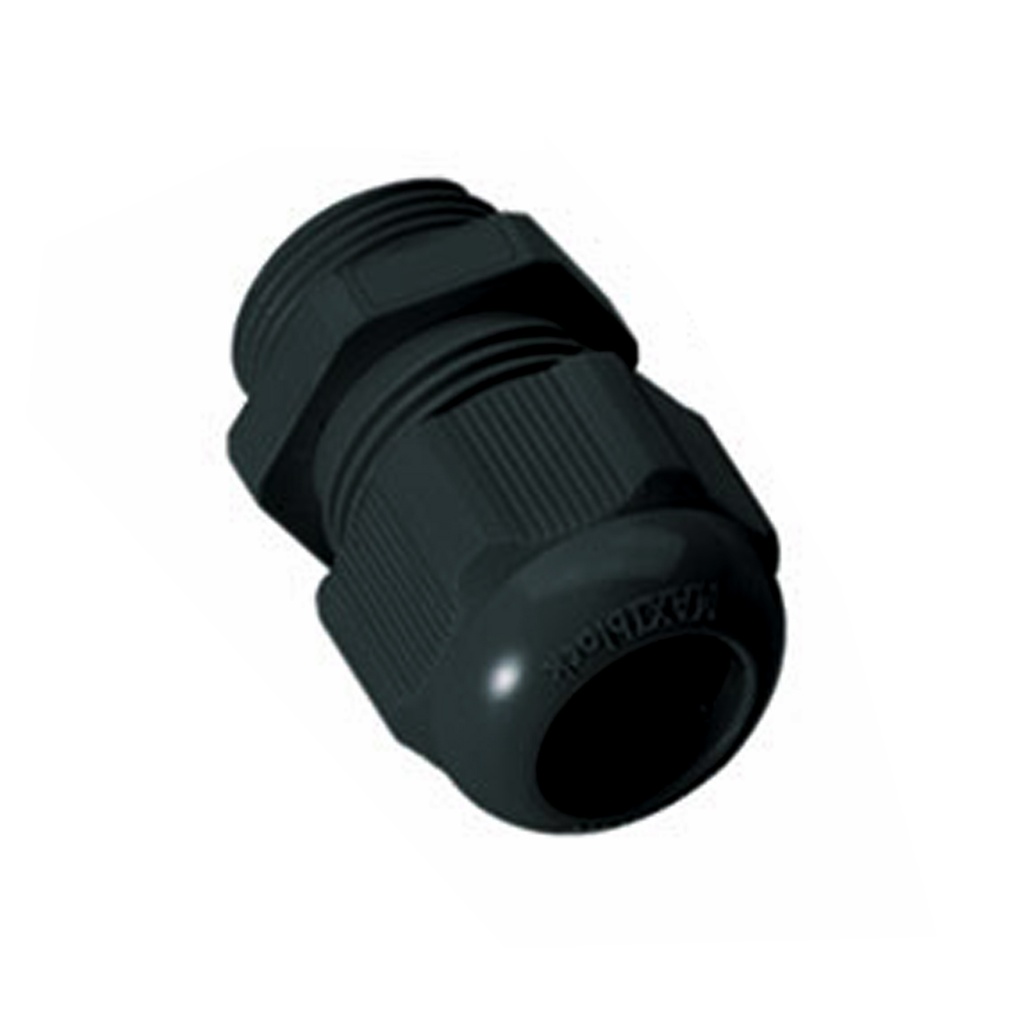

M20 Cable Gland, 7 - 13mm Clamping Range, Waterproof, Black, Plastic Nylon, IP68 NEMA 6

The ASI 3001226 is a M20 waterproof cable gland with M20 x 1.5 mm pitch threads, 25 mm tightening nut and 7 to 13 mm wire clamping range. The locknut is sold separately and is needed if cable gland is not used in a threaded hole. This M20 waterproof cable gland is made from black plastic nylon Polyamide PA 6.6 with a self-extinguishing flammability rating. The sealing ring of the strain relief cable gland is made of a flexible Neoprene to provide for a solid-liquid tight grip on the wire. This excellent sealing design used in these waterproof cable glands meet IP68, NEMA 6 and 6P standards for dust protection and water submersion. The M20 plastic cord grip cable glands can be used in applications with temperatures ranging between -20 degrees to 90 degrees Celsius.
