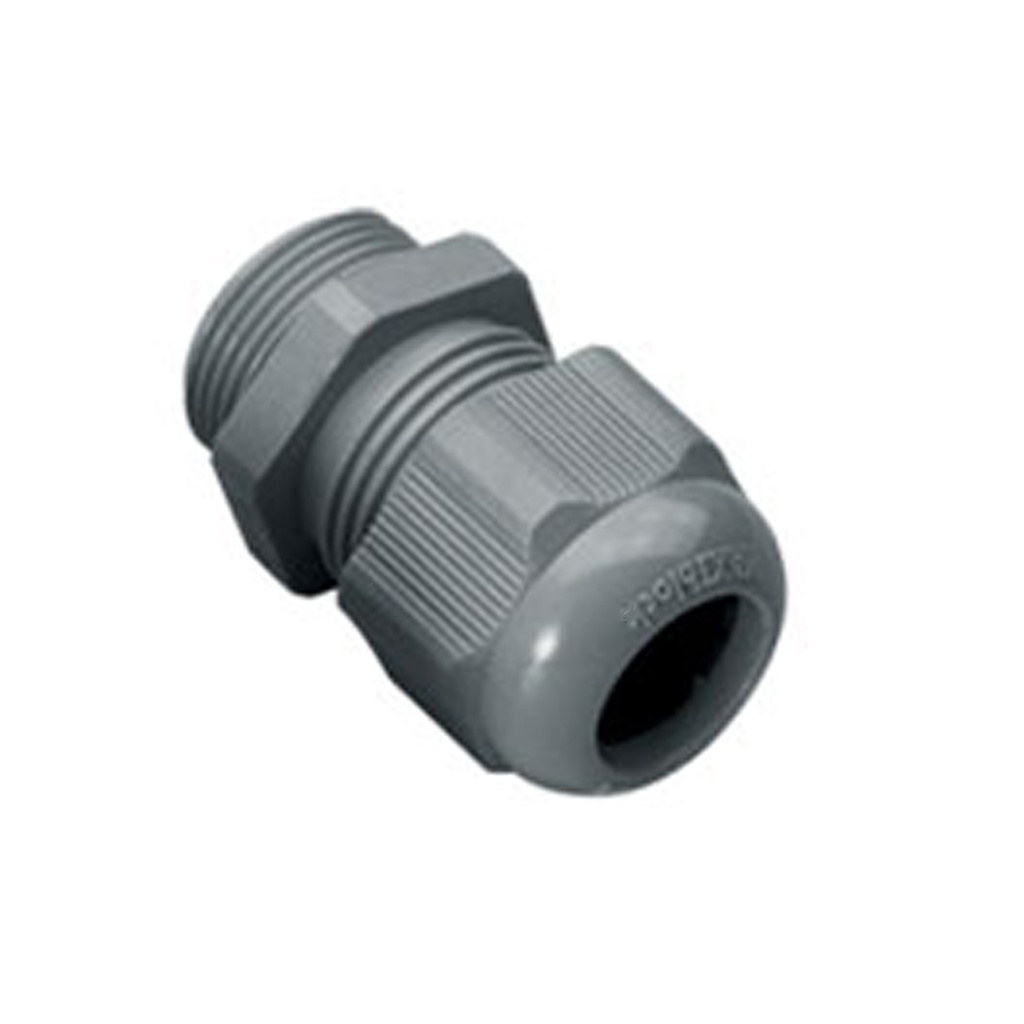

PG9 Plastic Hazardous Location Cable Gland for Class 1, 2, 21 & 22, 6.5-8 mm wire range

https://www.sourceasi.com/web/image/product.template/37044/image_1920?unique=4ca0669
SKU: 3002713

ASI 3002713 is an Ex cable gland with PG9 threads are suitable in hazardous environments - 1 & 2, 21 & 22 where gases, vapors, fogs and powders are present. These PG 9 is an Ex cable gland have a 15.5 mm mounting hole, factory installed O-ring and provide a 6.5 to 8 mm clamping range on cables and wires. The cable grip insert is made of a flexible Polyamide PA 6.6 and the factory fitted Nitrile 70 O-ring provide increased safety to the enclosure or panel after installation. The combination of the seal to the cable or wire and the seal to the enclosure insures that the ASI nylon plastic cable gland cord grips meet type IP65 protection. ASI hazard location is an Ex cable gland operate in temperature range between -20 degrees to +75 degrees Celsius. The ASI Atex PG9 cable gland is also available in an extended thread version for use in thicker panels.

Out Of Stock - Call for Availability

137.65 137.65 USD 137.65

137.65

Not Available For Sale

/Pack of 100 (1.38 / Each)

    This combination does not exist.

    Addtional Resources:
    Competitive Part Numbers: 4900.09
