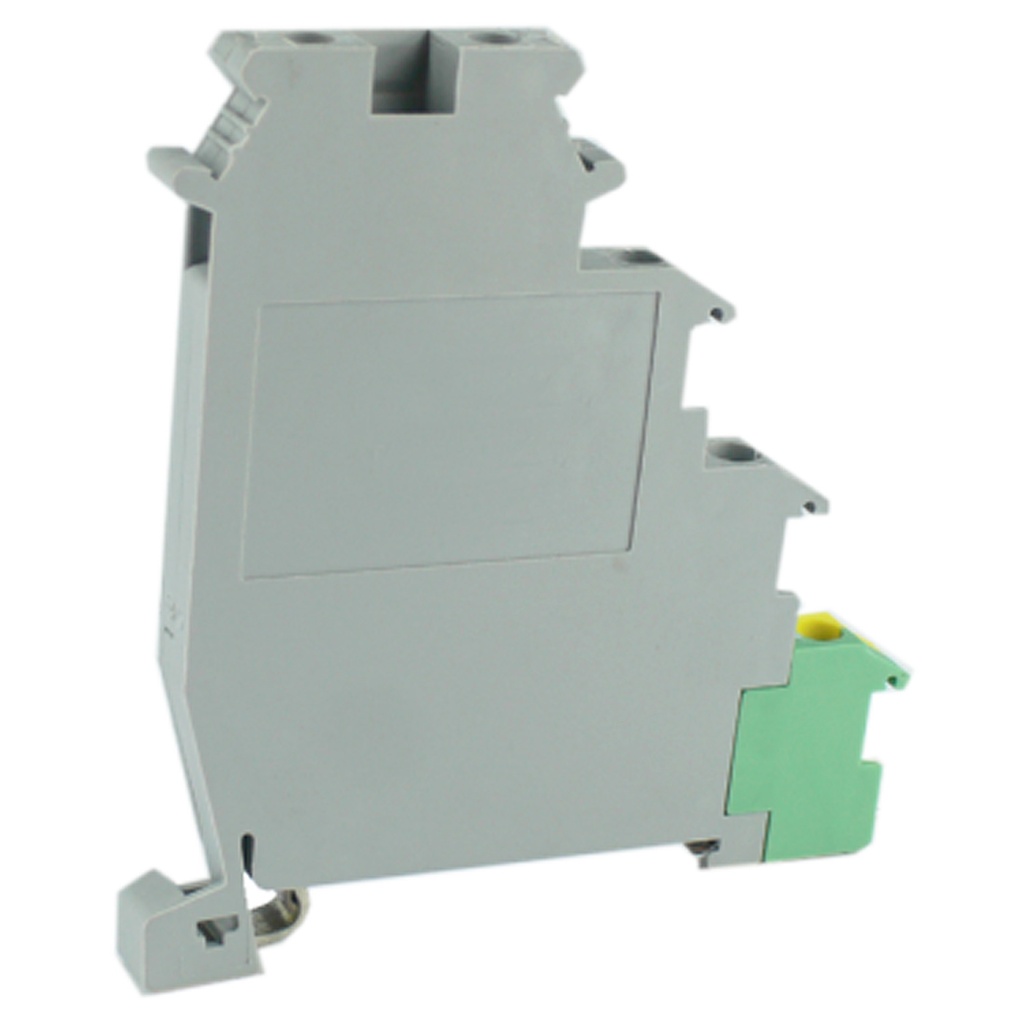

4-Level Sensor/Actuator Terminal Block | 1 Ground, 2 Common, 1 Feedthrough | 24–12 AWG | DIN Rail Mount | UKJ-VIOK1.5
The ASI011171 is a compact 4-level sensor/actuator terminal block for 24 - 12 AWG wire, offering one ground, two common, and one signal feed-through terminal. Designed for dense signal wiring in PLCs and industrial control panels, this DIN rail-mount terminal block simplifies the connection of sensors, actuators, and analog input/output signals. It’s the ideal companion to ASI's 4-20mA signal isolators and splitters (ASI4511 series), providing an organized wiring interface while supporting high-performance signal conditioning.
Key Benefits:
🔹 4-Level Design – Ground, dual common, and signal levels for structured wiring
🔹 DIN Rail Mount – Simplifies installation in control panels and cabinets
🔹 Wide Wire Compatibility – Supports 24 - 12 AWG wire for flexibility
🔹 Screw Clamp Termination – Secure, vibration-resistant connections
🔹 Clear Terminal Markings – Reduces installation errors and downtime
🔹 Space-Saving Profile – Ideal for high-density I/O setups
🔹 Cross-Compatible – Cost-effective alternative to Phoenix Contact VIOK 1.5
🔹 RoHS Compliant – Suitable for global installations
Applications:
🔹 Sensor & Actuator Wiring in Control Panels
🔹 Analog and Digital Signal Distribution for PLC I/O
🔹 Power and Signal Routing in Machinery and Automation
🔹 Industrial Panel Assembly and Field Wiring Management
🔹 Pairing with Signal Isolators & Splitters in Analog 4-20mA Loops
Recommended Pairing:
The ASI011171 terminal block is the ideal wiring interface when used with ASI's 4-20mA signal isolators and splitters from the ASI4511 series. While the ASI011171 organizes sensor wiring and signal flow, products like ASI451124 (1-in/2-out) or ASI451130 (2-channel isolator) handle analog signal splitting and isolation for PLC or DCS input channels.
Pair them together to:
- Reduce signal noise and eliminate ground loops
- Enable multi-channel monitoring from a single sensor
- Maintain a clean, modular, and maintainable panel layout
Why ASI?
🔹 Trusted by Engineers & Panel Builders – Proven performance across industries
🔹 Drop-in Alternative to Major Brands – Functionally equivalent at a lower cost
🔹 Fast U.S. Shipping & Stock Availability – No long lead times
🔹 Custom Labeling & Configurations – Ideal for OEM and large-scale builds
Order Online Now or Contact ASI for Bulk Pricing!
