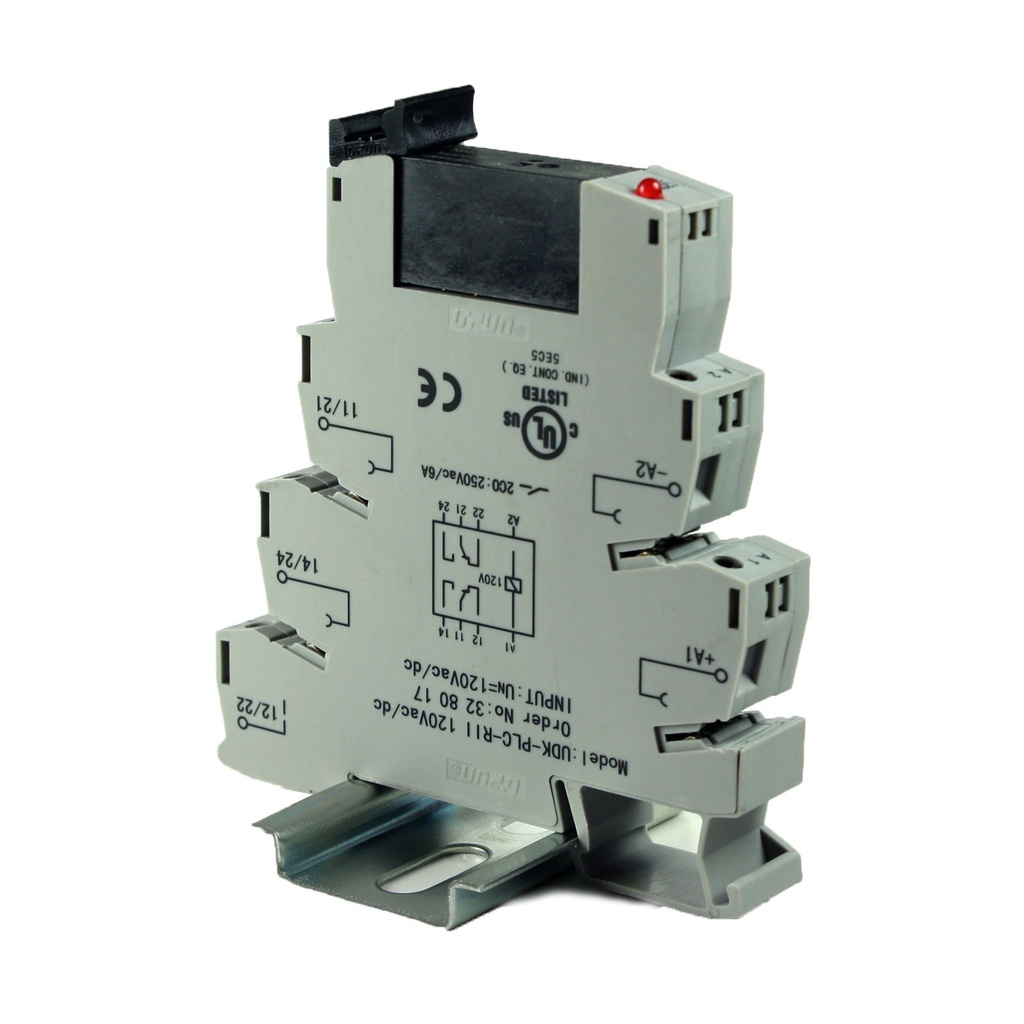

Terminal Block Relay, 120V Relay DIN Rail Mount, DPDT DIN Rail Relay, Coil 120Vdc, Contacts 8A 250Vac, ASI328017

The ASI328017, Type ASIUDK-PLC-RII120VACDC is a 120V terminal block relay with a pluggable DPDT relay that has a 120Vac/dc coil and a contact rating of 8A, 250Vac. This DPDT 120V DIN rail relay is ideal as an isolation relay or interposing relay and saves space in your equipment due to the 14mm width. Features of this DPDT 120V terminal block relay include screw clamp wire terminations, a locking actuator to hold in place and remove the 120Vac/dc relay and a LED for visual indication.You can compare this 120Vac/dc terminal block relay to Phoenix type PLC-RSC-120UC/21-21, part number 2967086. The terminal block relay base in combination with the 120Vac/dc pluggable relay are UL508 Listed and replacement relays are available. The push in jumpers can be used to save time when inserting a jumper from one 120Vac/dc relay terminal block to another.Since this industrial relay mounts on the standard 35mm DIN rail installation with other DIN rail mounted components is quick and easy.To ensure wiring is correct each 120Vac/dc terminal block relay base has the wiring diagram printed on the side.Snap in markers are available to identify each terminal block relay in your panel. The ASI328017, ASIUDK-PLC-RII120VAC/DC terminal block relay is cULus 508 Listed for use in both the USA and Canada.
