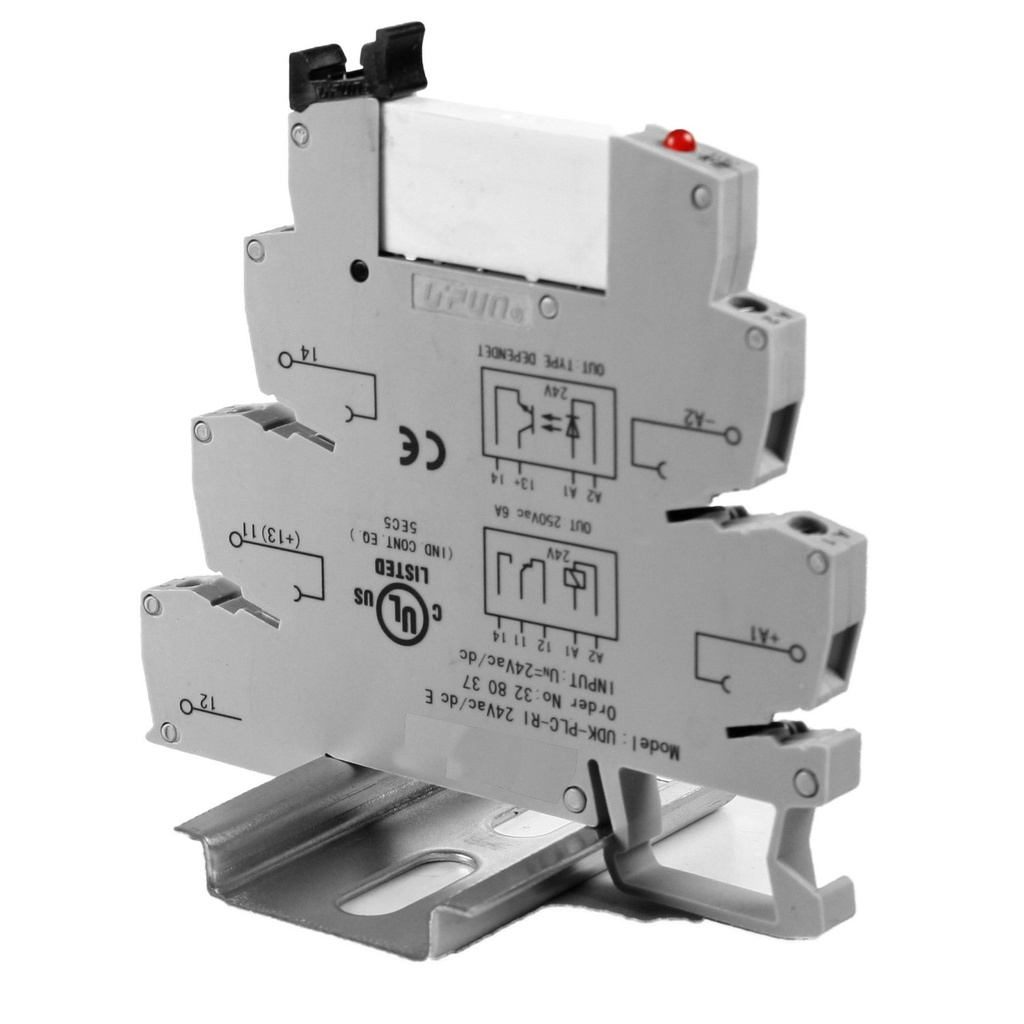

Terminal Block Relay, DIN Rail Relay 24V, Interposing Relay 24Vac/dc, Low Profile Height, SPDT, 24Vac/dc Coil, 6A 250Vac Contact, ASI328037

https://www.sourceasi.com/web/image/product.template/53899/image_1920?unique=9c141ab
SKU: ASI328037

The ASI328037, Type ASIUDK-PLC-RI24VAC/DC is a low profile height 24V terminal block relay with a pluggable SPDT relay that has a 24Vac/dc coil and a contact rating of 6A, 250Vac. This lower height 24V DIN rail relay is ideal as an isolation relay or interposing relay and saves space in your equipment due to the 6mm width. The lower height of this 24V relay terminal block makes it ideal for small enclosures. Features of this 24V terminal block relay include screw clamp wire terminations, a locking actuator to hold in place and remove the 24Vac/dc relay and a LED for visual indication. You can compare this 24Vac/dc terminal block relay to Phoenix type PLC-RSC-24UC/21, part number 2966184. The terminal block relay base in combination with the 24Vac/dc pluggable relay are UL508 Listed and replacement relays are available. The push in jumpers can be used to save time when inserting a jumper from one 24Vac/dc relay terminal block to another. Since this industrial 24V relay terminal block mounts on the standard 35mm DIN rail installation with other DIN rail mounted components is quick and easy. To ensure wiring is correct each 24Vac/dc terminal block relay base has the wiring diagram printed on the side. Snap in markers are available to identify each terminal block relay in your panel. The ASI328037, ASIUDK-PLC-RI24VAC/DC Low Profile terminal block relay is cULus 508 Listed for use in both the USA and Canada.

In Stock (18)

11.11 11.11 USD 11.11

11.11

Not Available For Sale

/EACH (11.11 / EACH)

    This combination does not exist.

    Competitive Part Numbers: 2966184
