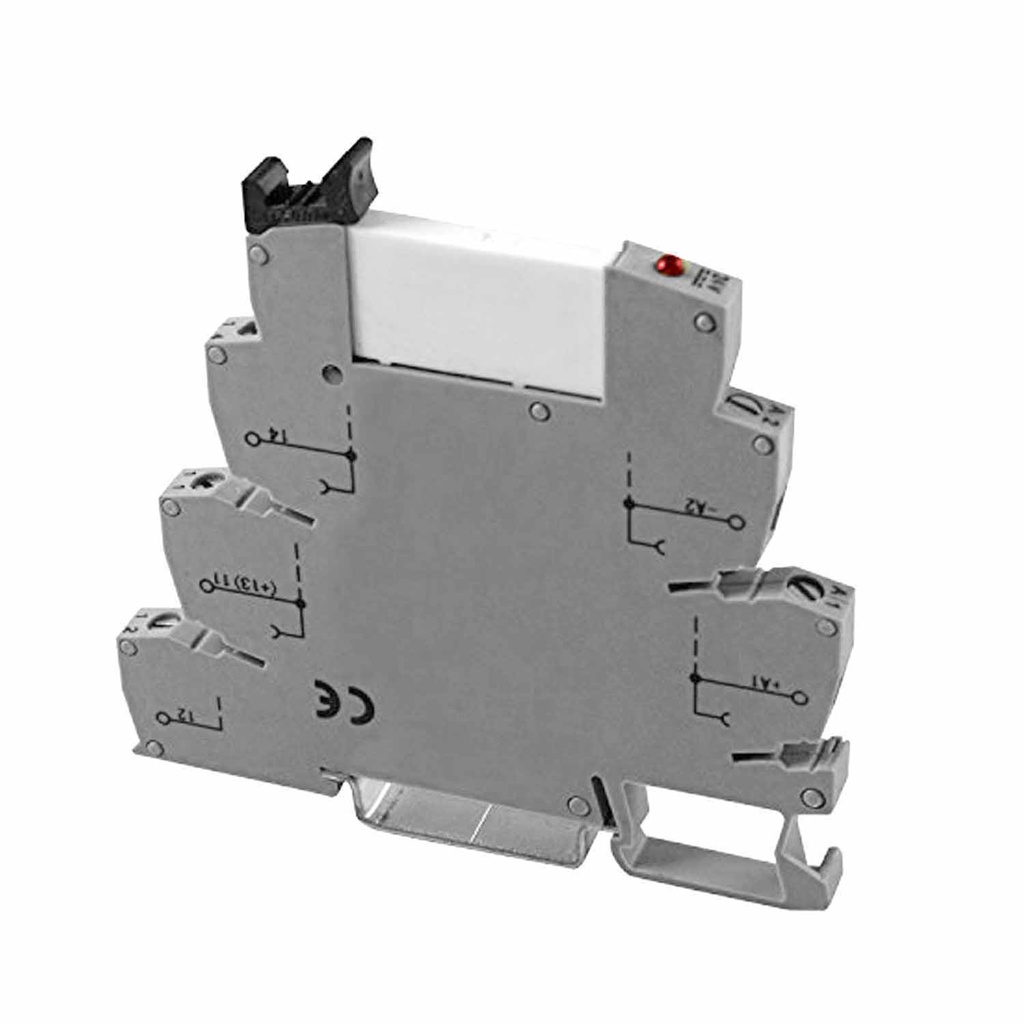

Terminal Block Relay 60V, DIN Rail Relay 60Vdc With Spring Terminal Block Connections, SPDT, 60Vdc Coil, 6A 250Vac Contact, ASI328046

The ASI328046, Type ASIUDK-PLC-RJI60VDCE is a 60V terminal block relay with spring terminal wiring and with a pluggable SPDT relay that has a 60Vdc coil and a contact rating of 6A, 250Vac. This 60V DIN rail relay with screwless terminal wiring is ideal as an isolation relay or interposing relay and saves space in your equipment due to the 6mm width. Features of this 60V terminal block relay include spring terminal wire terminations, a locking actuator to hold in place and remove the 60Vdc relay and a LED for visual indication. You can compare this 60Vdc terminal block relay to Phoenix type PLC-RSP-60DC/21, part number 2966511. The terminal block relay base in combination with the 60Vdc pluggable relay are UL508 Listed and replacement relays are available. The push in jumpers can be used to save time when inserting a jumper from one 60Vdc relay terminal block to another. Since this industrial 60V relay terminal block with screwless terminal wiring mounts on the standard 35mm DIN rail installation with other DIN rail mounted components is quick and easy. To ensure wiring is correct each 60Vdc terminal block relay base has the wiring diagram printed on the side. Snap in markers are available to identify each terminal block relay in your panel. The ASI328046, ASIUDK-PLC-RJI60VDCE terminal block relay is cULus 508 Listed for use in both the USA and Canada.
