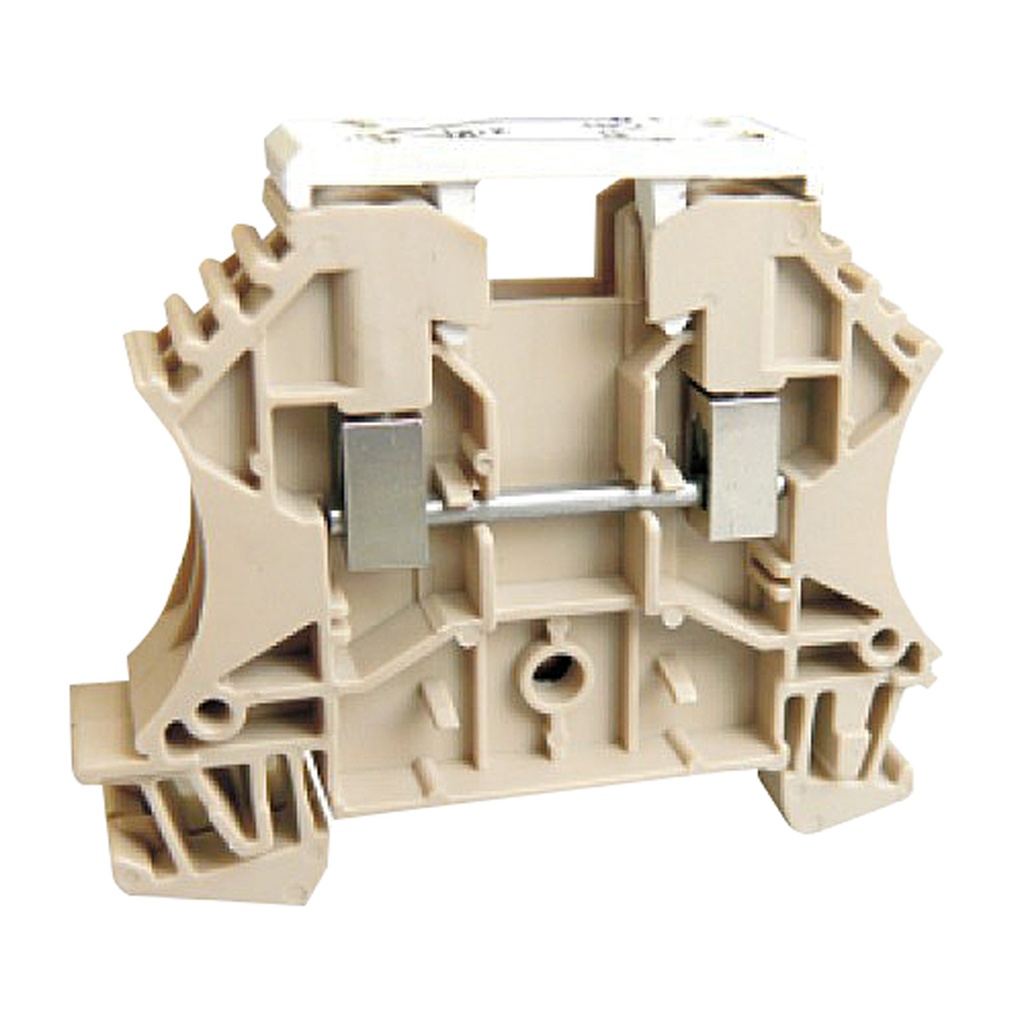

Thermocouple Terminal Block, Type T, DIN Rail Mount, 1 Amp, 55 Volt ,26-14AWG, ASI431019

The ASI431019 is a thermocouple terminal block this is used with type T thermocouples. This thermocouple terminal block mounts on a standard 35mm DIN rail and is used to connect type T thermocouple sensor extension leads. This DIN rail type T thermocouple terminal block is a 10.4 mm wide beige screw clamp terminal block rated at 26 to 14 AWG and 1 Amp at 55 Volt. This thermocouple terminal block for type T thermocouples has two poles per block and each current bar is made of the same metal as the conductors, copper and copper nickel. The intermediary metal body is designed so that no false signals are transmitted within the terminal when temperature differences occur between the positive and negative paths. Compare the ASI431019 to type WDU2.5/TC TYP T, 1024200000 and 1492-JTC3T.
