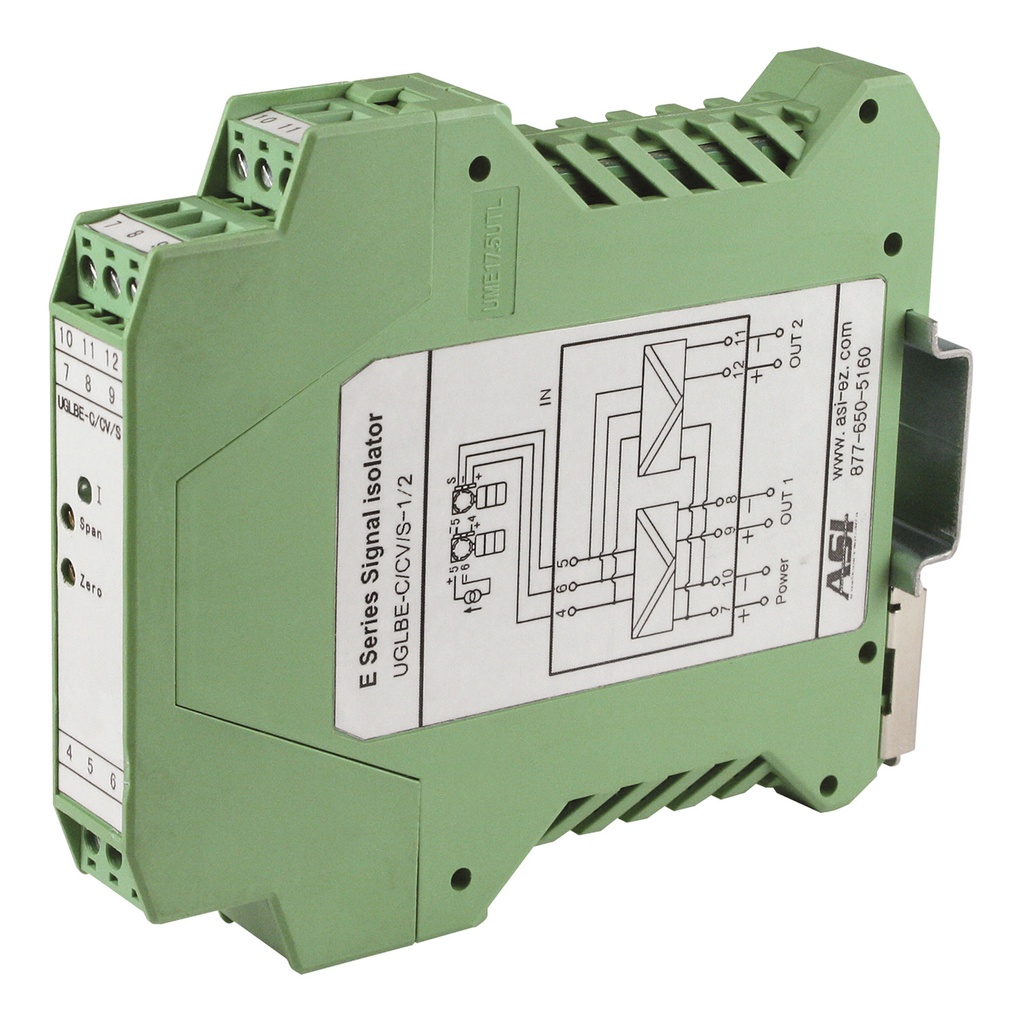

4-20mA Signal Splitter | Dual Isolated Outputs | 24V DC Powered | High Accuracy & Fast Response | Din Rail Mount
The ASI451145 4-20mA Signal Splitter is a high-precision, DIN rail-mounted unit designed to split and isolate an input current signal into two independent, fully isolated outputs. With high accuracy and ultra-fast response times, it ensures precise signal transmission without interference or loss. Requires a 24V DC External Power Supply for operation.
This industrial-grade signal conditioner is ideal for applications such as process automation, data acquisition, and PLC integration, where multiple devices need to receive the same sensor signal without signal degradation. The compact, space-saving DIN rail mount allows for quick and secure installation in control panels.
Compared to competitors the ASI451145 offers superior signal accuracy, isolation, and cost-efficiency, making it the best choice for high-performance industrial applications.
Applications:
The ASI451145 is versatile and suitable for various industrial applications, including:
🔹 Process Control Systems: Distributing a single sensor signal to multiple controllers or indicators.
🔹 Automation Systems: Providing isolated signals to different parts of a control system to prevent ground loops.
🔹 Data Acquisition: Feeding a single analog signal to multiple data acquisition devices simultaneously.
🔹 Signal Monitoring: Allowing for concurrent monitoring and control of critical process variables.
Key Features:
🔹 Input: Single 4-20mA or 0-20mA (2-wire or 3-wire)
🔹 Outputs: Dual independent 4-20mA or 0-20mA
🔹 Isolation: Three-way electrical isolation between input and outputs
🔹 Mounting: Compact design for standard 35mm DIN rail
🔹 Adjustments: Zero and span potentiometers for precise calibration
🔹 Power Supply: Operates on 24V DC nominal
At Automation Systems Interconnect (ASI), we deliver high-performance automation components with a focus on reliability, affordability, and ease of use.
🔹 Superior Build Quality – Our industrial-grade signal splitters are designed for high accuracy, low drift, and reliable long-term performance in demanding environments.
🔹 Quick & Secure Installation – Compact DIN rail design allows for effortless mounting, while screw terminals ensure a secure and vibration-resistant connection.
🔹 Trusted by Industry Professionals – ASI signal conditioning solutions are widely used by OEMs, system integrators, and industrial engineers for precision automation applications.
Order online today or contact us for bulk pricing options.
