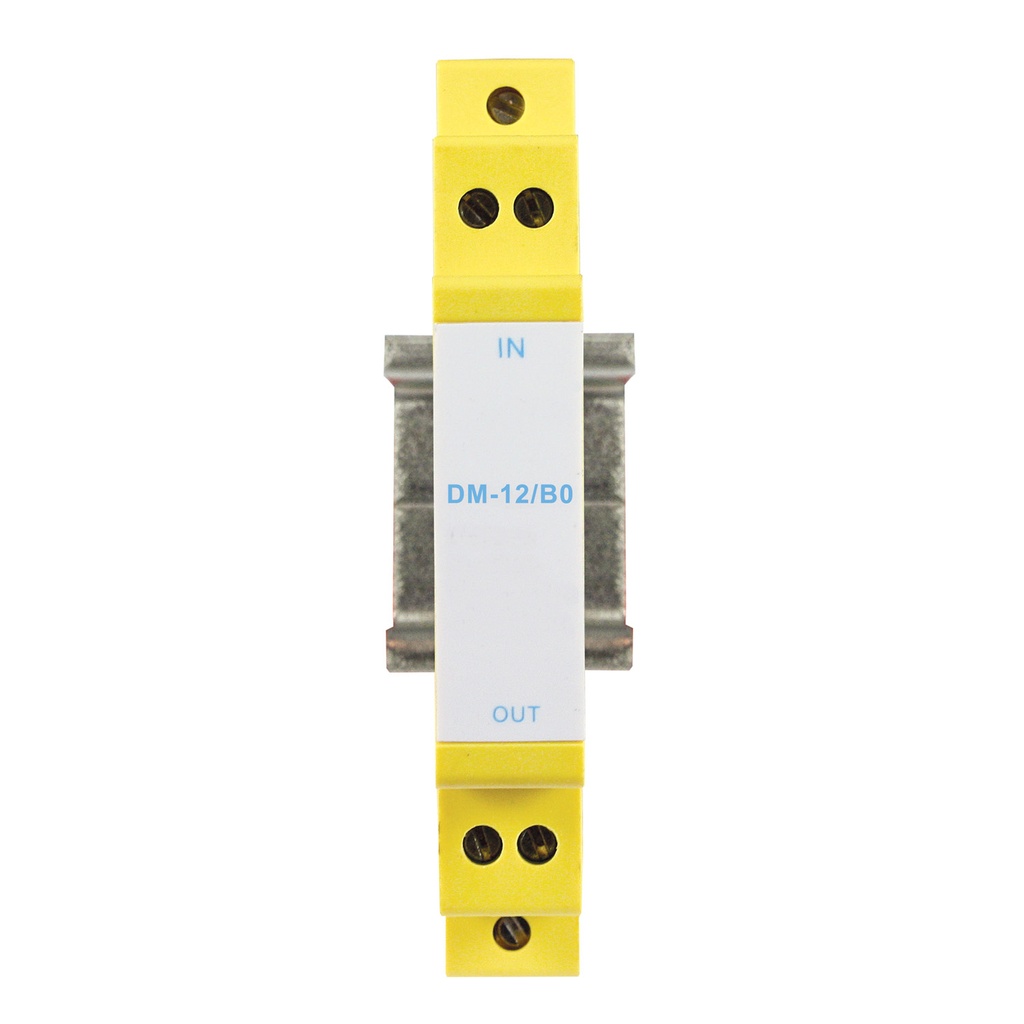

12V RS485 Surge Protector, Data Line Surge Protector For 12V Circuit, DIN Rail Mount, 2 Wire,
SKU: ASIDM12-B0
The ASIDM12-B0 is a RS485 surge protector that is DIN rail mount and provides data line surge protection for a one pair line. This RS485 data line surge protection is rated at a maximum 15 Vdc voltage and 10 kA Maximum discharge according to the 8/20 curve. Nominal ratings are a nominal voltage 5 Vdc and 5 kA nominal discharge. This is a 12 volt 2-wire SPD for RS485 systems and features 3 levels of surge protection including GDT, diodes, and MOV.
Out Of Stock - Call for Availability
