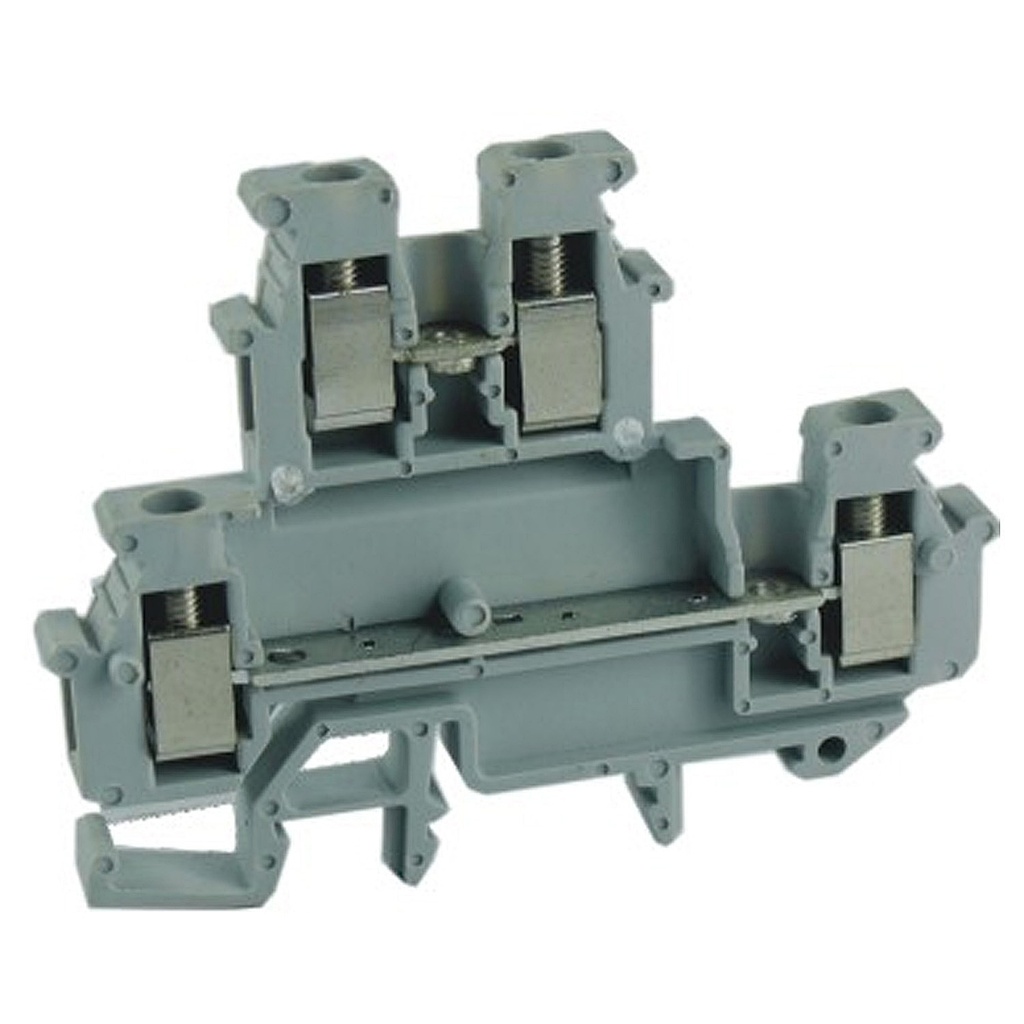

ASIUKKB5 DIN Rail Terminal Block, Double Level, Separate bridgeable levels, Screw Clamp 26-10 AWG, 30 amps, 600 volts, UL

The ASIUKKB5 is a 2 level terminal block with separate bridging capability on each level. This 2 level DIN rail terminal block is 6.2 mm wide and features screw clamp wire connections. By stacking two feed through connections onto one terminal block reduces the space used on the DIN rail by 50%. Both levels of the terminal block are independently bridgeable. This ASI 2 level DIN rail terminal block is rated at 30 to 10 AWG wire gauge, 30 Amp at 600 Volt. It snaps onto standard 35 mm DIN rail. Available accessories are ASIDUKKB35 End cover, ASIZB610B Blank Strip Markers, ASIEB106 10 Position Jumper (sold separately). Compare the ASI 2 level DIN terminal to Phoenix 2771146, Type UKKB5.
