Power Supply, Battery Charger and Backup module in one single device connected directly to the single phase AC power supply.

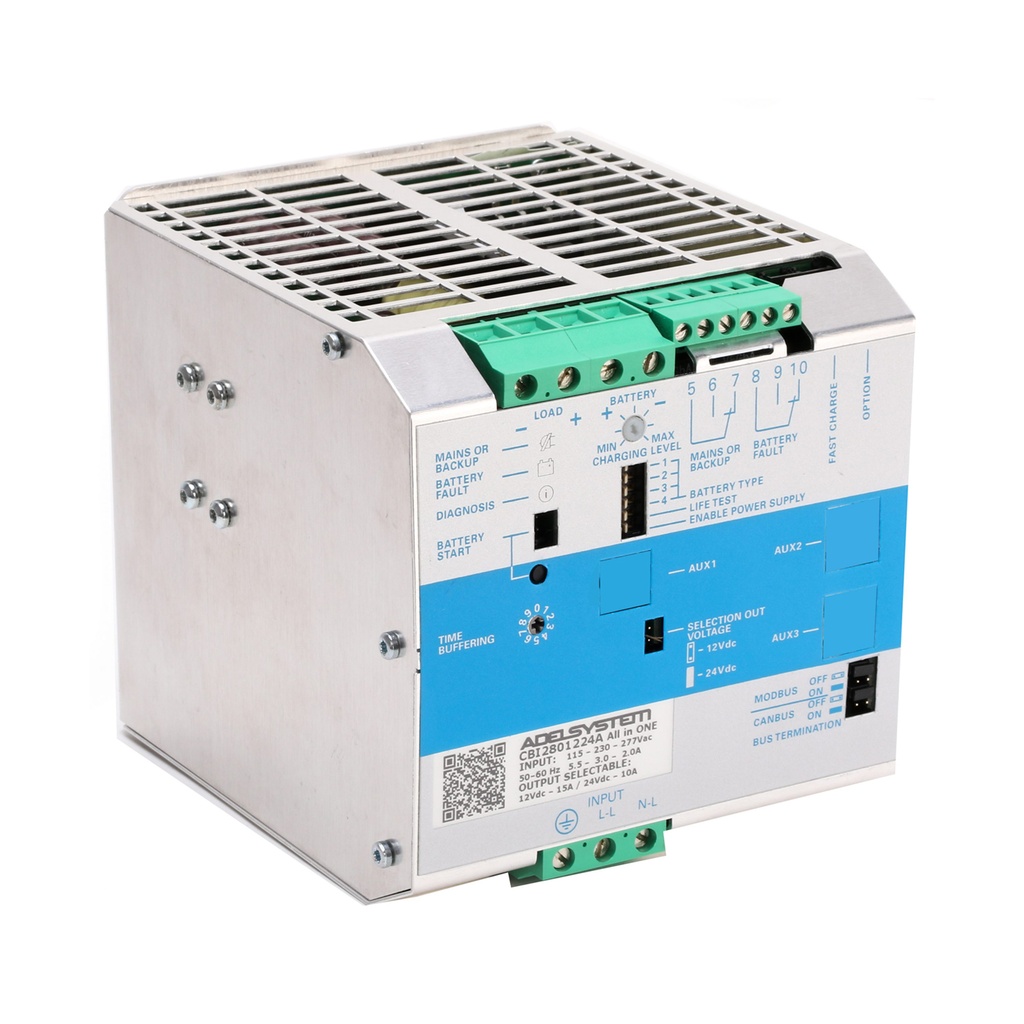

The CBI2801224A All In One module makes it possible to optimize the power management of your system with one single, extremely compact and cost-effective device, power supply plus battery charger and backup module in one single device connected directly to the universal single phase 115-230-277 Vac power line. The load output and the battery output are 12 Vdc, 3,6,10,15,35 Amps; 24 Vdc, 3,5,10,20 Amps; and 48 Vdc, 5,10 Amps. The CBI2801224A is suitable for use with a wide range of battery types. It features automatic diagnosis of battery status and battery life. The CBI2801224A module is protected against short circuit, overload and inverted polarity. It features dry contact outputs for signaling Low Battery, Battery Replacement, as well as AC Power Status. The enclosure is IP20 Rated. For additional information regarding functionality and installation of the CBI2801224A module please refer to the CBI2801224A Datasheet and the DC UPS System Instruction Manual.
