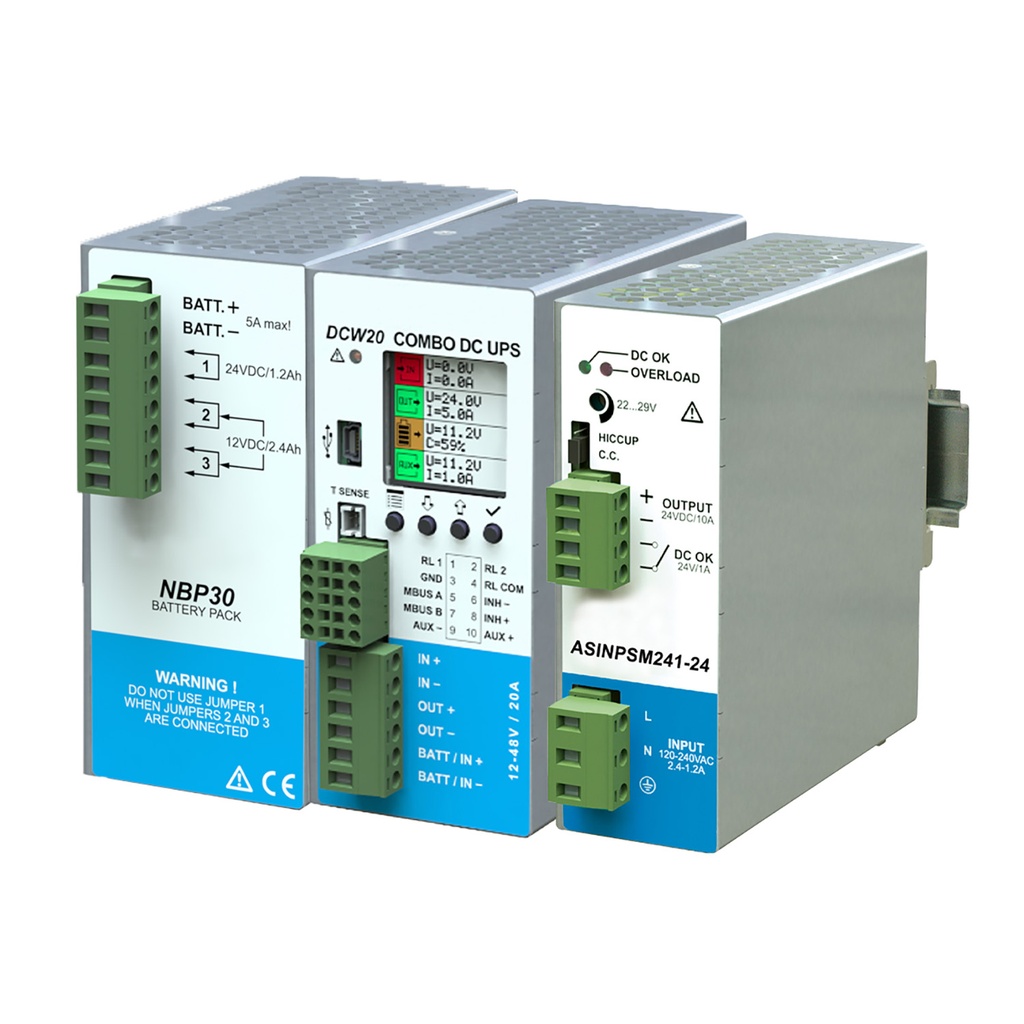

Intelligent 12-24V, 10A, High Performance DC UPS Package

The DCU20-K101 is a high-performance DIN rail 10A DC UPS system that includes the power supply, a microprocessor-controlled DC UPS, and 2 DIN rail mount battery packs. The DCU20 intelligent DC UPS has an input range of 10-29Vdc, it has a color graphic display, 4 user programming buttons. USB interface, and 2 alarm contacts. With remote shutdown capability, this DC UPS can operate up to 20 amps, has numerous battery monitoring functions, PC communications, and numerous battery protection circuits. The NPSM241-24 ultra-compact 10A, 24Vdc power supply used in this package is a high efficiency, only 40mm wide, and has numerous protection circuits, LED status indicators, alarm contacts, and pluggable terminal block connectors for easy installation. This package also includes 2 DIN rail mount battery packs, including batteries, that deliver 2.4Ah of back up power. We offer DIN rail DC UPS systems for 12V, 24V, and 48V applications from basic general-purpose DC UPS to microprocessor-controlled, high-performance DIN rail mount DC UPS systems with communication capability and a wide range of features.
