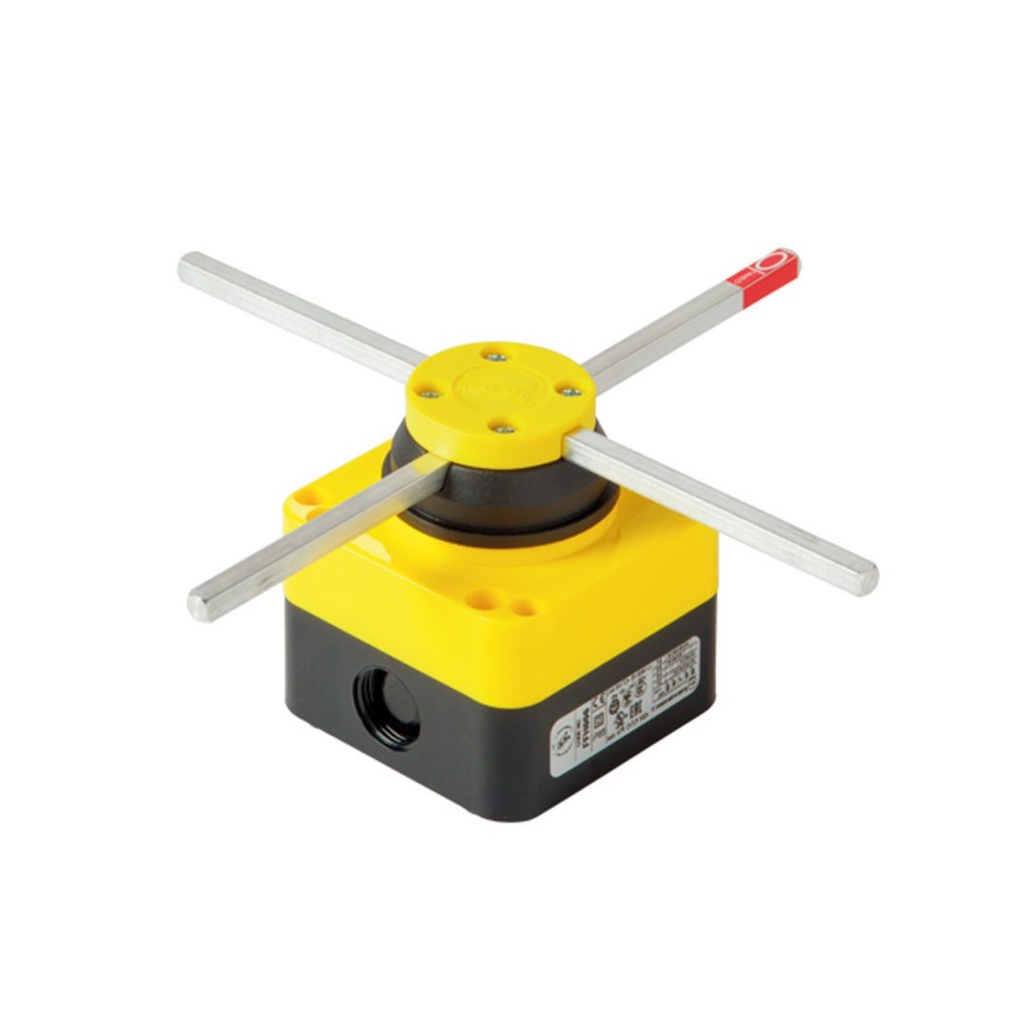

Compact Cross Limit Switch, 4 Position, Without Interlock, Single Speed, 2 Pole

The ASI FFH003 is a compact single speed 4 position cross limit switch without a mechanical interlock typically used as a overhead crane limit switch. This 4 position single speed cross bar limit switch uses a 2 pole rotary cam switch with positive opening contacts that are rated at 16 amps. The compact housing of the FFH cross bar limit switch allows for mounting in any area with space restrictions. The 6x6mm aluminum rods on this compact cross limit switch are 200mm end to end and the IP65 rated thermoplastic housing is equipped with 2 knockouts for easy to install cable glands.
