16 Amp, 1 Pole, 240V AC, 60V DC, Trip Curve: C, DIN Rail Mount-Miniature Circuit Breaker, UL1077

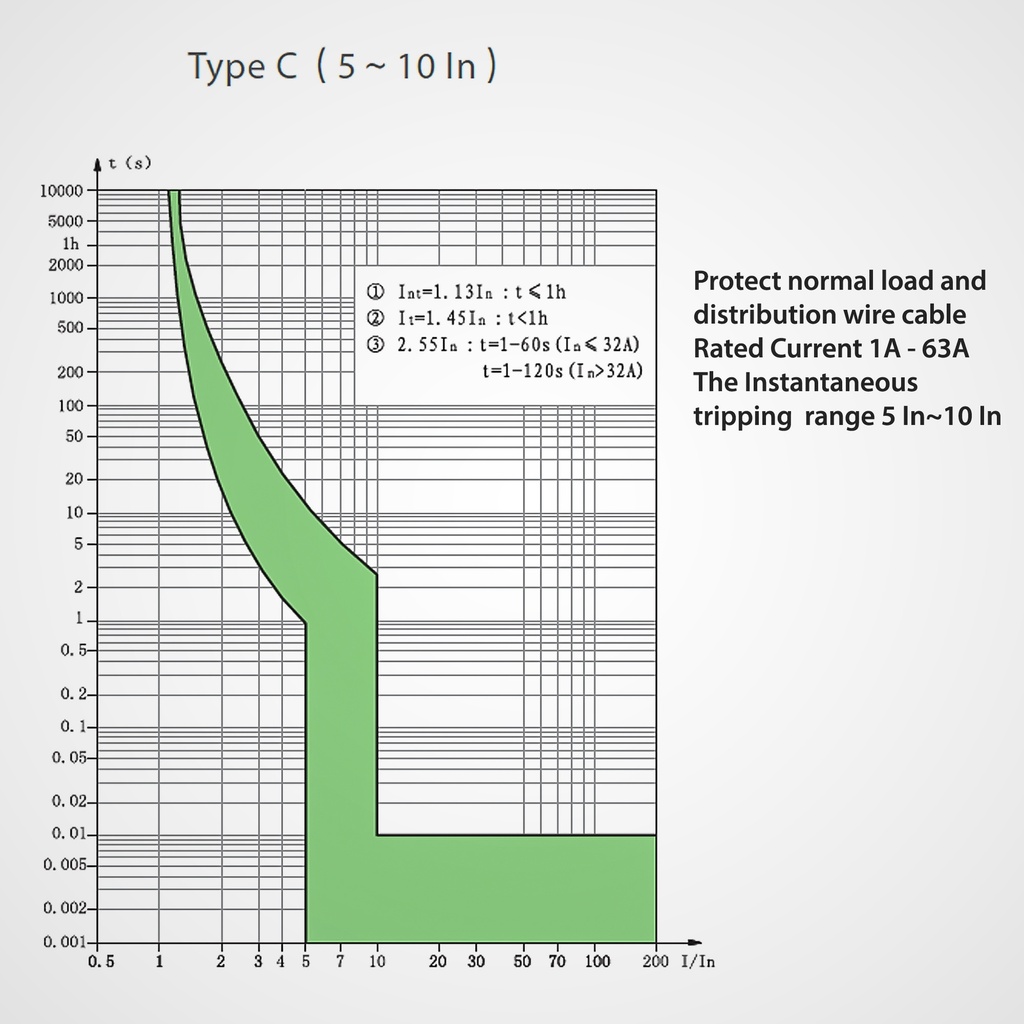

The ASI NDB2-63C16-1 is a 1-pole 16 Amp MCB DIN rail circuit breaker, specifically designed for UL1077 supplemental applications. This thermal magnetic MCB breaker is versatile, operating in both 240V AC and 60V DC circuits. Notable features encompass an 18mm wide footprint, DIN rail mounting for easy installation, a visual LED indication for quick tripped status identification, and a C trip curve tailored for typical inductive loads. Providing comprehensive protection, it includes safeguards against overload and short-circuit scenarios. The breaker boasts user-friendly characteristics such as easy-to-wire screw clamp MCB terminations. Additionally, it meets RoHS compliance standards and offers an impressive 10kA interrupt capacity. With certifications from UL1077, IEC60898-1, GB 10963.1, as well as UL1077, TUV, CE, CCC, the NDB2-63C16-1 stands out as a reliable 16 amp MCB DIN rail circuit breaker.
Specifications
| Amperage | 16 Amps, 16 Amps |
| Poles | 1, 1 |
| Trip Curve | C Trip Curve (Medium), C Trip Curve (Medium) |
| Breaker Mounting Style | DIN Rail |
