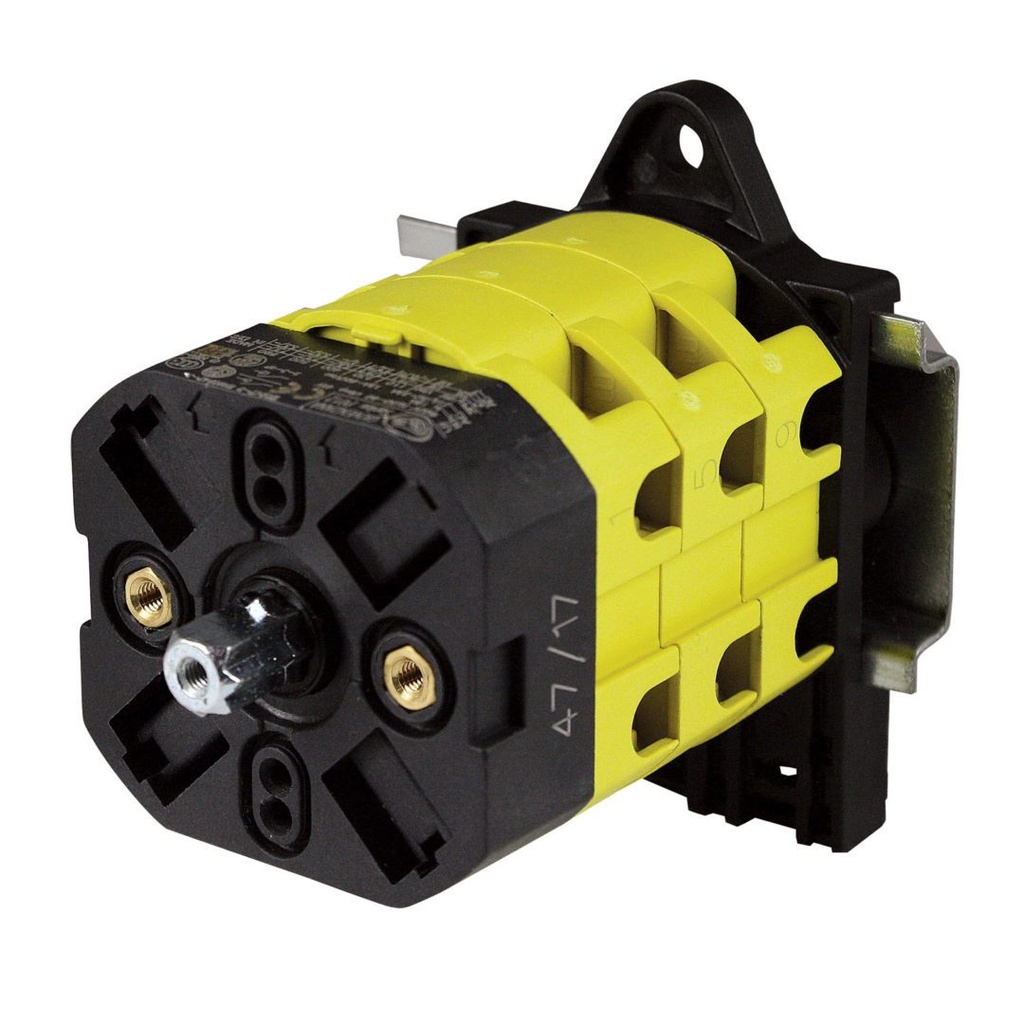

Rotary Cam Switch, 2 Position, On-Off, Load Break Switch, 6 Pole, 12 A, 600 Vac, DIN Rail Mount

The ASI P0120006D is a rotary cam switch, 2 position, 6 pole, that is DIN rail mounted and can provide an on off function as a load break switch. The ASI P0120006D 2 position, 6 pole rotary cam switch features self cleaning contacts, silver alloy plating and a UL94V0 thermoplastic housing. With a UL508 general use rating of 12A at 600Vac, the P0120006D DIN rail mount 6 pole, 2 position, rotary cam switch or load break switch is a compact design to save space, the wire connections are shock hazard proof and information on wiring and identification are laser engraved into the housing. This robust rotary on off switch is ideal for control and load break switching applications in all types of industrial applications. A wide range of NEMA 4X handles and operators are available for the rotary cam switch including a lockable handle capable of accepting padlocks. Custom configurations of rotary cam switches are available upon request.
