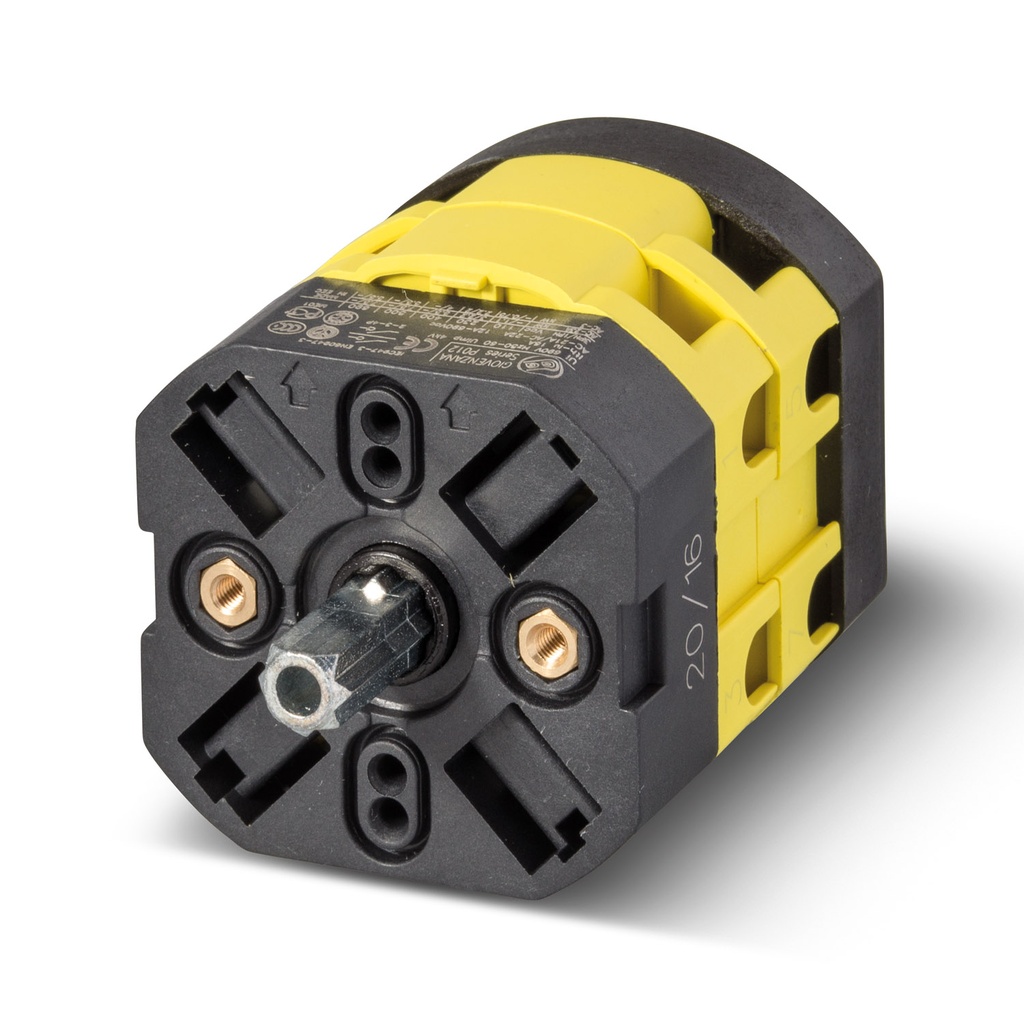

Motor Reversing Starter Switch With An Auxiliary Phase For Single Phase Electric Motors Up To 1HP

The ASI P0120018R is a rear panel mounted motor reversing starter switch or drum switch for single phase motors with an auxiliary phase for use with single phase motors up to 1 horsepower. This motor reversing starter switch can be used with 120vac and 240vac 1 phase motors with an auxiliary phase. This single phase motor reversing drum switch features self cleaning contacts, silver alloy plating and a UL94V0 thermoplastic housing. With UL508 listing of 600 Vac, 12A this single phase motor reversing starting switch is ideal for single phase motors that have an auxiliary phase ranging from .5HP to 1 HP based on voltage. The P0120018R single phase ac motor reversing switch is a compact design to save space, the wire connections are shock hazard proof and information on wiring and identification are laser engraved into the housing. This robust motor reversing starter switch is ideal for ac motor starting and reversing in all types of industrial applications. A wide range of NEMA 4X handles and operators are available for the motor reversing starter switches including a lockable handle capable of accepting padlocks. Complete motor reversing starter switch enclosures or drum switches are available upon request.
