Star Delta Starter Switch For Three Phase Motors Up To 7.5 HP, 16A, 600V, NEMA 4X, Rear Panel Mounting, UL508 Listed

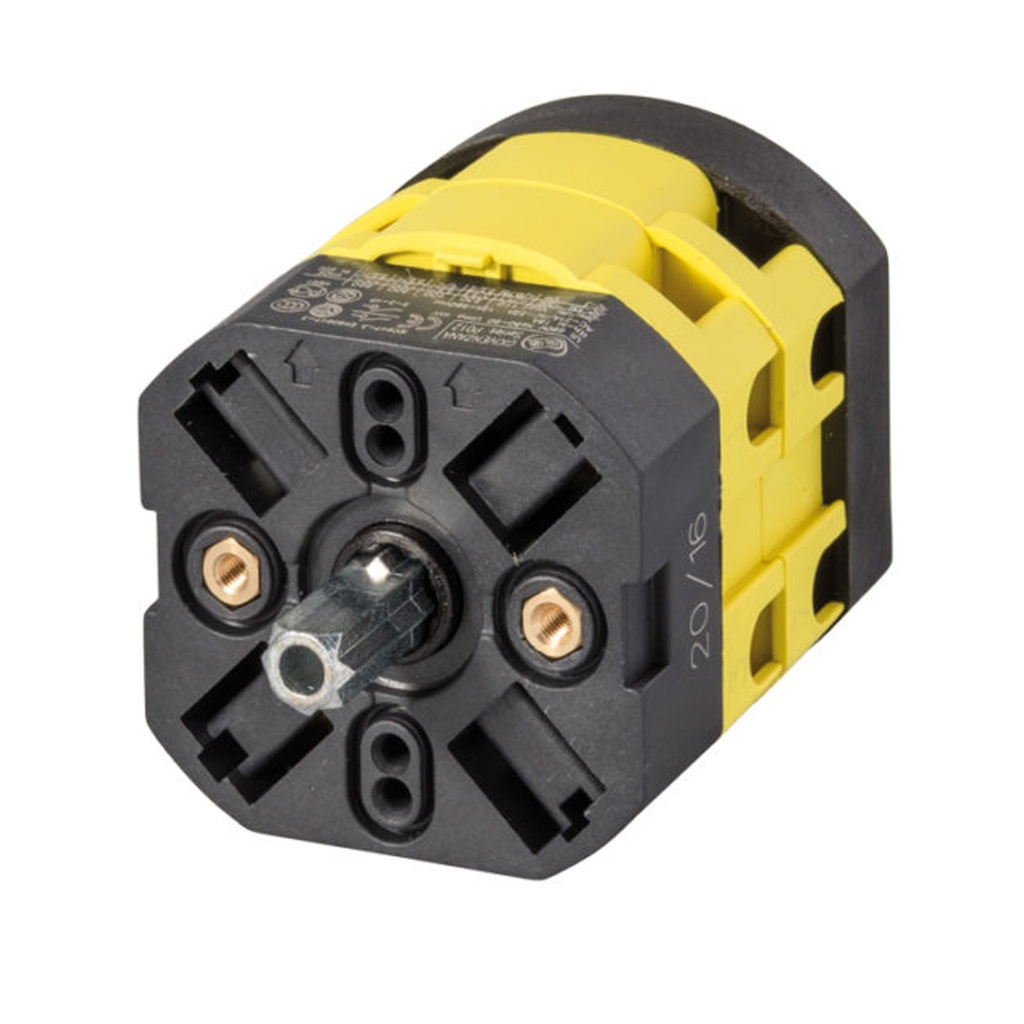

The ASI P0160015R is a rear panel mounted star delta starter switch for 3 phase motors up to 7.5 horsepower. This reversing star delta cam switch can be used with 208vac, 480vac, and 600vac 3 phase motors. This 3 phase star delta cam switch features self cleaning contacts, silver alloy plating and a UL94V0 thermoplastic housing. With a UL508 listing of 600 Vac, 16A this forward and reverse star delta starter switch is ideal for three phase motors ranging from 3 HP to7. 5 HP based on voltage. The P0160015R ac motor star delta switch is a compact design to save space, the wire connections are shock hazard proof and information on wiring and identification are laser engraved into the housing. This robust star delta starter switch is ideal for ac motors with star delta wiring in all types of industrial applications. The star delta starter cam switch wiring diagram can be found under the picture of the star delta starter switch. A wide range of NEMA 4X handles and operators are available for the star delta reversing switches including a lockable handle capable of accepting padlocks. Complete star delta starter switch enclosures are available upon request.
