Reversing Dahlander Pole Changing 2 Speed Switch 7.5 HP 16A

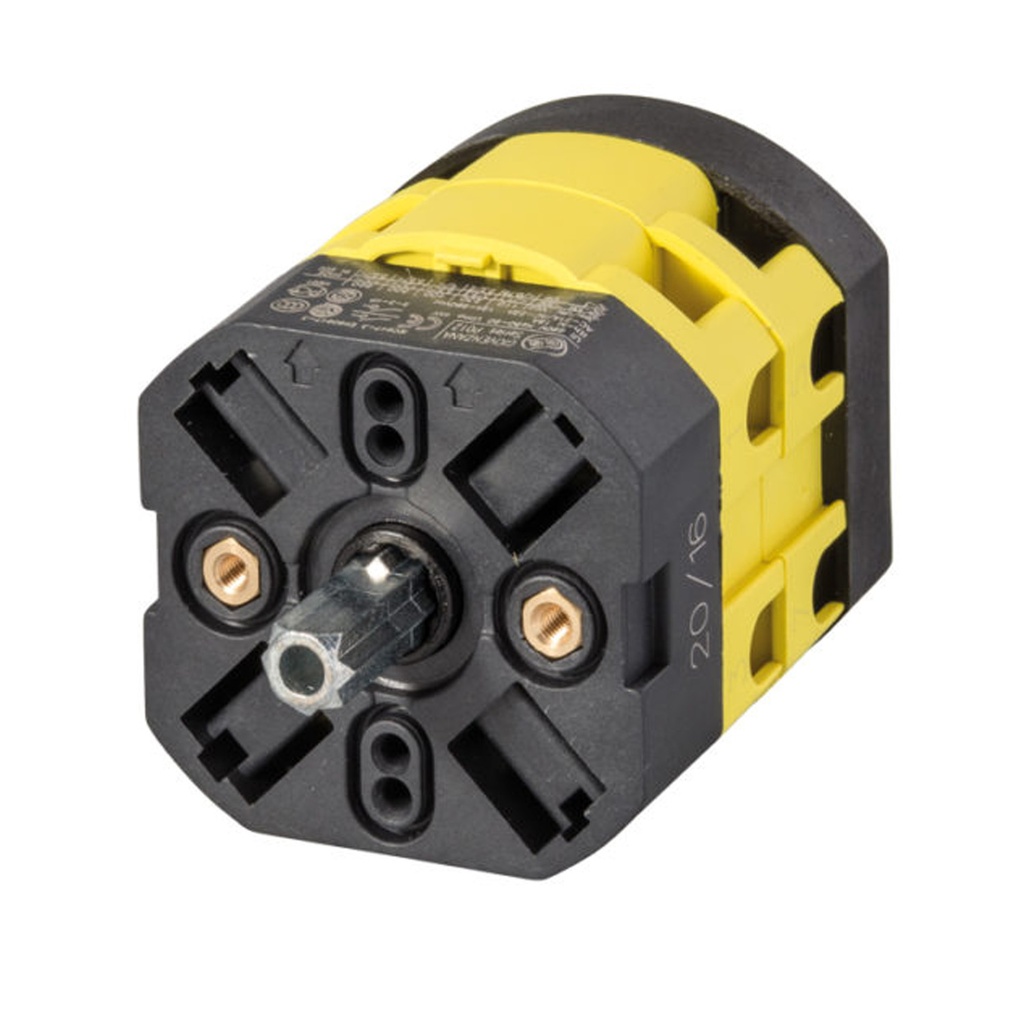

The ASI P0160031R is a rear panel mounted reversing two speed pole changing switch for use with dahlander 3 phase motors up to 7.5 horsepower. The ASI P0160031R reversing dahlander pole changing switch for two speed selection can be used with 208vac, 480vac, and 600vac 3 phase motors. This 3 phase reversing dahlander motor two speed pole changing switch features self cleaning contacts, silver alloy plating and a UL94V0 thermoplastic housing. With UL508 listing of 600 Vac, 16A this reversing pole changing dahlander motor switch is ideal for three phase motors ranging from 3 HP to 7.5 HP based on voltage. The P0160031R 3 phase reversing dahlander switch is a compact design to save space, the wire connections are shock hazard proof and information on wiring and identification are laser engraved into the housing. This robust reversing dahlander cam switch is ideal for speed control in all types of industrial applications. The reversing dahlander switch wiring diagram can be found under the picture. A wide range of NEMA 4X handles and operators are available for the reversing dahlander motor two speed switches including a lockable handle capable of accepting padlocks. Complete reversing dahlander pole changing two speed switch enclosures are available upon request
