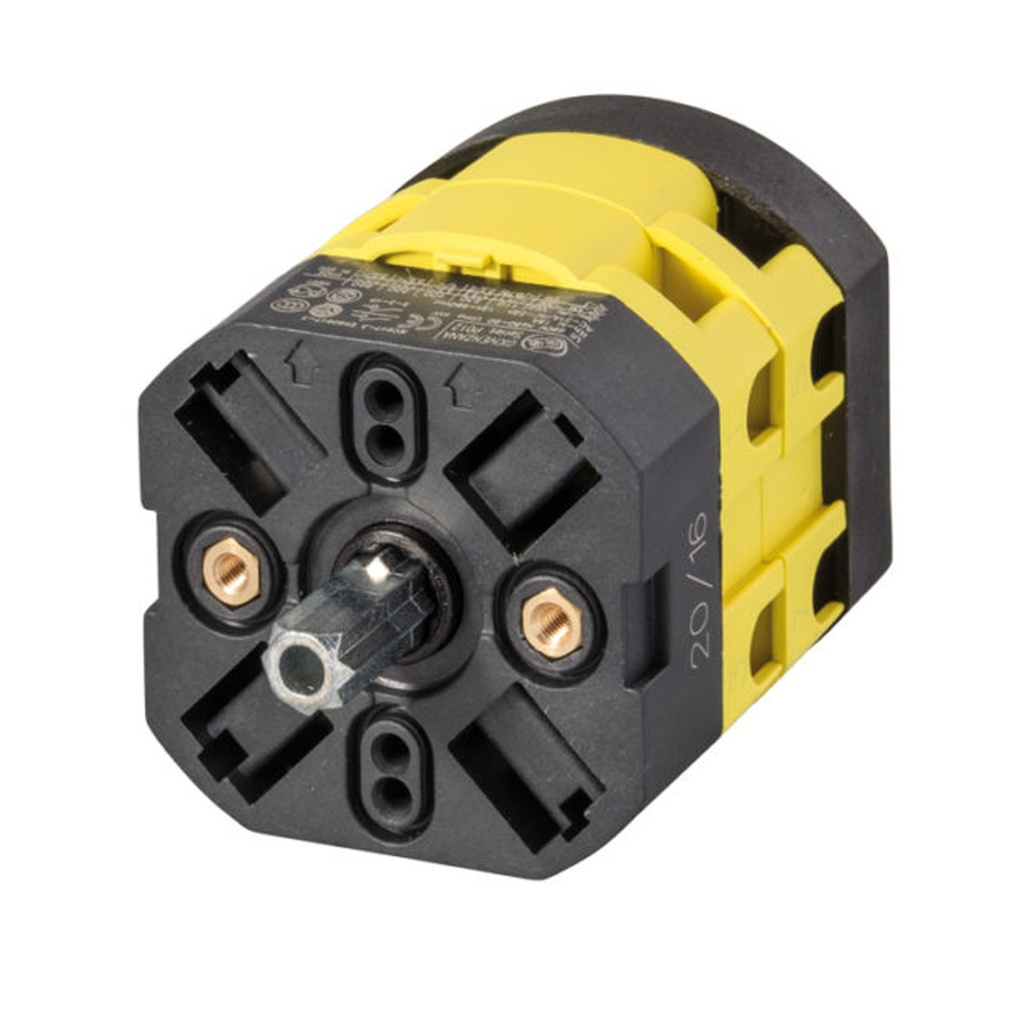

2 Pole 4 Step Rotary Cam Switch Without Zero, 20 Amps, 600V, Rear Panel Mount UL508
The ASI P0200042R is a rear panel mounted multi step 2 pole rotary cam switch that is four step switch without off. The ASI P0200042R 4 step multi step switch features self cleaning contacts, silver alloy plating and a UL94V0 thermoplastic housing. With a UL508 general use rating of 20A at 600Vac, the P0200042R two pole 4 position multi step rotary cam switch is a compact design to save space, the wire connections are shock hazard proof and information on wiring and identification are laser engraved into the housing. This robust 20 amp 4 position, 2 pole multi step switch is ideal for control and load switching applications in all types of industrial applications. Custom configurations of rotary cam multi step switches are available upon request.
Specifications
| UL | UL 508 |
| Cam Switch Amperage | 20 Amps |
| Cam Switch Positions | 5 |
| Cam Switch Type | Multi Step |
| Cam Switch Mounting | Rear Panel Mount |
