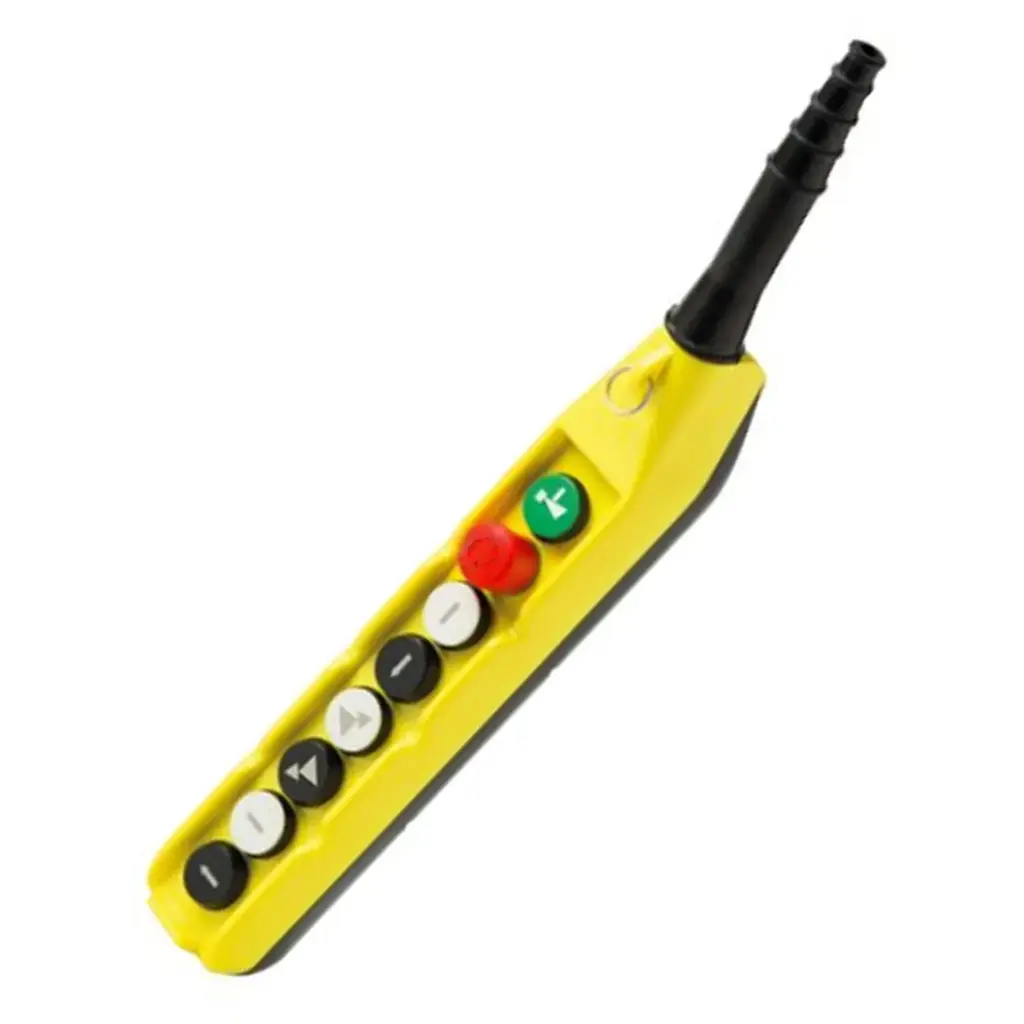

8 Button Crane Pendant, 8 Button Pendant Station With 6 bidirectional, 2 2-Speed, Alarm, Estop Button

ASI PL08D2/E 8 push button crane pendant control station features a twist to release e-stop button, up-down, left-right and two speed front-back control push button switches and a Green Start Alarm Button. This 8 position station for pendant controls of overhead cranes is assembled with special NO two speed contacts for each of the front-back push button switches. The up-down and left-right push buttons have a standard NO contact and the emergency stop push button has a NC contact block. The Green Start Alarm Button is equipped with 2 NO contact blocks. The slim housing of this 7 push button crane pendant is made of a double insulated thermoplastic that is shock proof and heat resistant and provides IP65, NEMA 4X protection. The NO/NC and special two speed NO contacts use easy to wire screw clamp connections. The laser engraved switches on this 8 push button crane hoist control station ensure clear operator actions.
