Panel Interface Connector With Female DB9 Connector | Enclosed Panel Feed Through 9 Pin D Sub Connector | IP65 and NEMA 4X

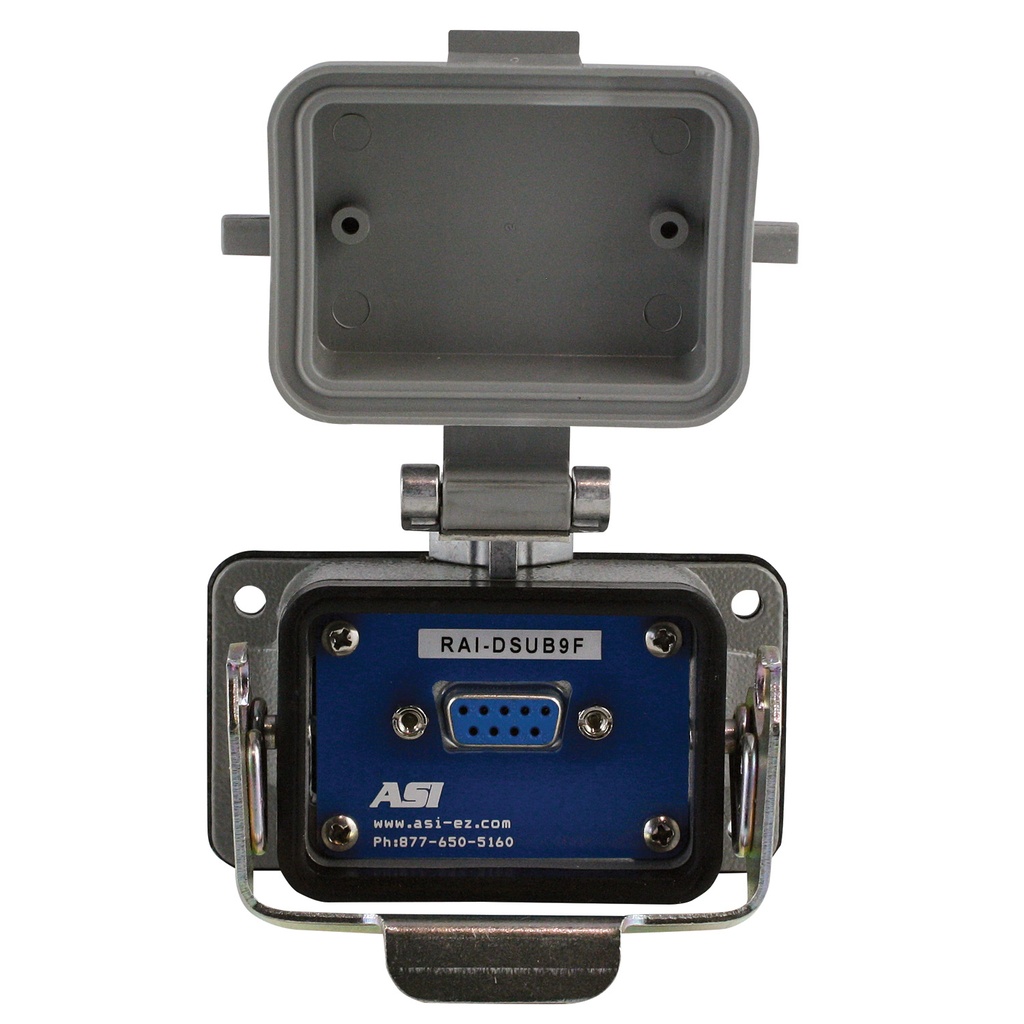

The ASI RAI-DSUB9F is a robust panel interface connector, designed to provide safe and convenient access to a 9-pin female DB9 connector within electrical panels. Mounted in a durable aluminum housing with a locking cover, this waterproof through-panel interface ensures easy external connection to serial communication ports without the need to open the enclosure, maintaining high levels of safety and security.

The RAI-DSUB9F panel interface connector is designed for quick and secure installation, mounting with four screws into a cut-out on the panel wall to create a protected gateway between the panel's internal and external connections. The gasket-sealed housing ensures a watertight and dustproof seal, meeting NEMA 4, 4X, and IP65-rated protection against environmental exposure.

Internal connections to the 9-pin female panel interface connector are made easy using a cable equipped with a male DB9 connector, providing a secure and efficient serial communication link between external devices and internal control systems.
Key Features & Benefits:

🔹 9-Pin Female DB9 Connector – Enables easy external access to serial communication ports without opening the enclosure.
🔹 Waterproof & Dust proof Housing – Gasket-sealed design meets NEMA 4, 4X, and IP65 standards for protection against environmental factors.
🔹 Locking Cover for Safety & Security – Protects the DB9 connector from dust, moisture, and unauthorized access.
🔹 Easy Panel Mounting – Installs with four screws for a secure and reliable connection.
🔹 Durable Aluminum Construction – Built for industrial and commercial applications.
🔹 Versatile Panel Interface – Supports various connector options, including AC receptacles, RJ, Ethernet, and additional D-sub miniature connectors.
🔹 Simple Internal Connections – Connects internally via a male DB9 connector cable, ensuring a secure and efficient link.
Applications:

🔹 Industrial Control Panels – Provides protected access to serial communication ports for automation and control systems.
🔹 Outdoor & Waterproof Electrical Enclosures – Ensures reliable data transmission in harsh environments.
🔹 Factory & Automation Systems – Ideal for connecting external diagnostic tools and communication devices.
🔹 Commercial & Networking Installations – Supports various equipment requiring DB9 serial interface connections.

The ASI RAI-DSUB9F panel interface connector delivers secure, waterproof, and convenient access to 9-pin DB9 connections, making it the ideal choice for industrial, commercial, and automation applications.
