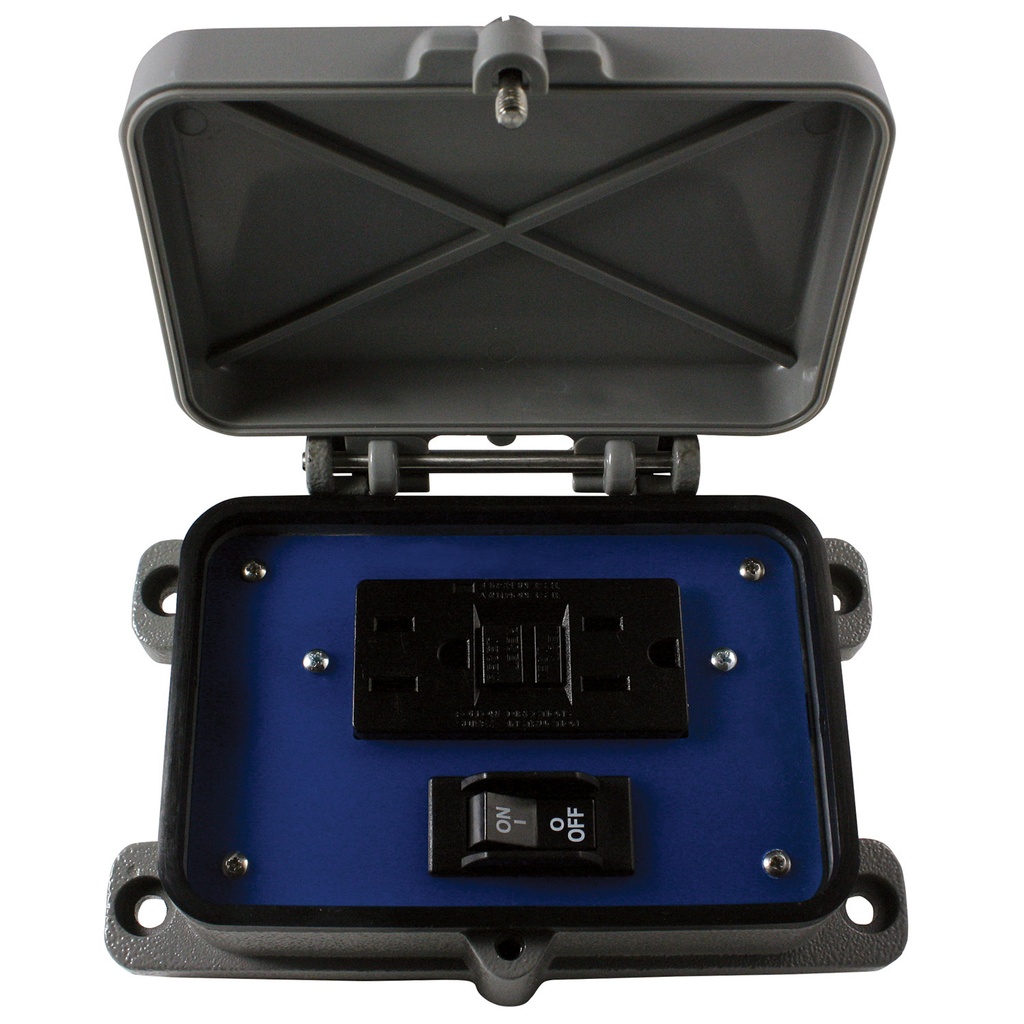

ASI RAI-GFCI-104-B Panel Interface Connector | 120V GFCI Receptacle, 5A Circuit Breaker, Waterproof Housing

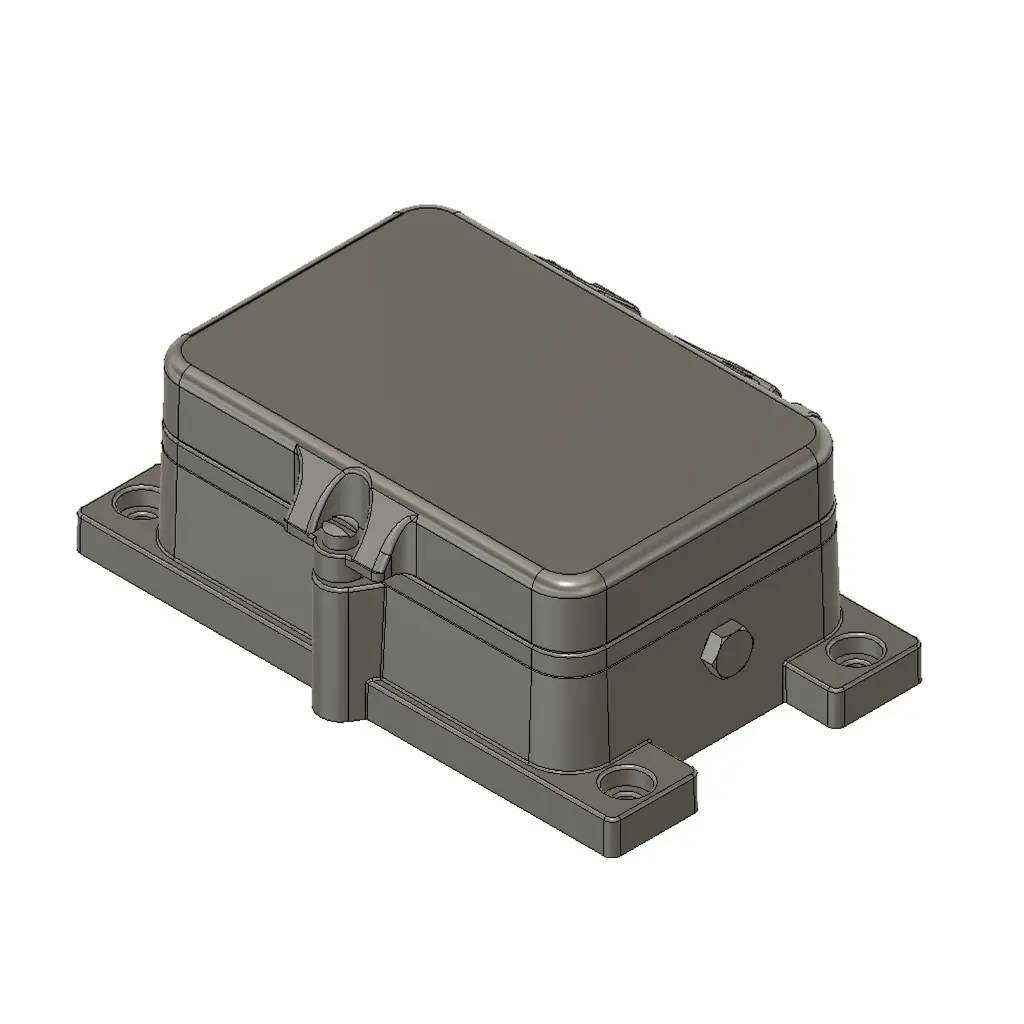

The ASI RAI-GFCI-104-B is a robust panel interface connector, designed to provide safe and convenient access to a 120V GFCI receptacle and a 5A circuit breaker within electrical panels. Mounted in a durable aluminum housing with a locking cover, this waterproof through-panel interface ensures easy access to power and circuit protection while maintaining a high level of safety and reliability.
The integrated 5A circuit breaker is rated for 250V AC, allowing for overload protection and manual operation. A locking cover protects the components from external contaminants while providing quick access to reset a tripped breaker. The gasketed housing ensures a sealed installation, achieving NEMA 4, 4X, and IP65-rated protection against water, dust, and environmental exposure.
The RAI-GFCI-104-B panel interface connector is designed for easy installation, mounting with four screws into a cut-out on the panel wall, creating a secure and protected gateway between the panel's interior and exterior. This interface simplifies wiring access while ensuring safe and efficient power distribution.
Key Features & Benefits:
🔹 Integrated 120V GFCI Receptacle – Provides ground fault protection and safe power access.
🔹 Built-In 5A Circuit Breaker (250V AC Rated) – Ensures overload protection and manual reset capability.
🔹 Locking Cover for Safety & Security – Protects the circuit breaker and GFCI outlet from external contaminants.
🔹 Waterproof & Dustproof Housing – Gasket-sealed design meets NEMA 4, 4X, and IP65 standards.
🔹 Easy Panel Mounting – Installs with four screws for a secure and reliable connection.
🔹 Durable Aluminum Construction – Built for industrial and commercial applications.
🔹 Versatile Panel Interface – Supports various connector options, including AC receptacles, RJ Ethernet, and D-subminiature.
Applications:
🔹 Industrial Control Panels – Provides protected GFCI power access for control and automation systems.
🔹 Outdoor & Waterproof Electrical Enclosures – Ensures reliable power distribution in harsh environments.
🔹 Factory & Automation Systems – Ideal for equipment requiring safe power access with circuit protection.
🔹 Commercial & Residential Power Panels – Supports various power needs in industrial and commercial buildings.
The ASI RAI-GFCI-104-B panel interface connector delivers safe, convenient, and waterproof power access with a built-in 120V GFCI receptacle and 5A circuit breaker, making it the ideal choice for industrial, commercial, and automation applications.
