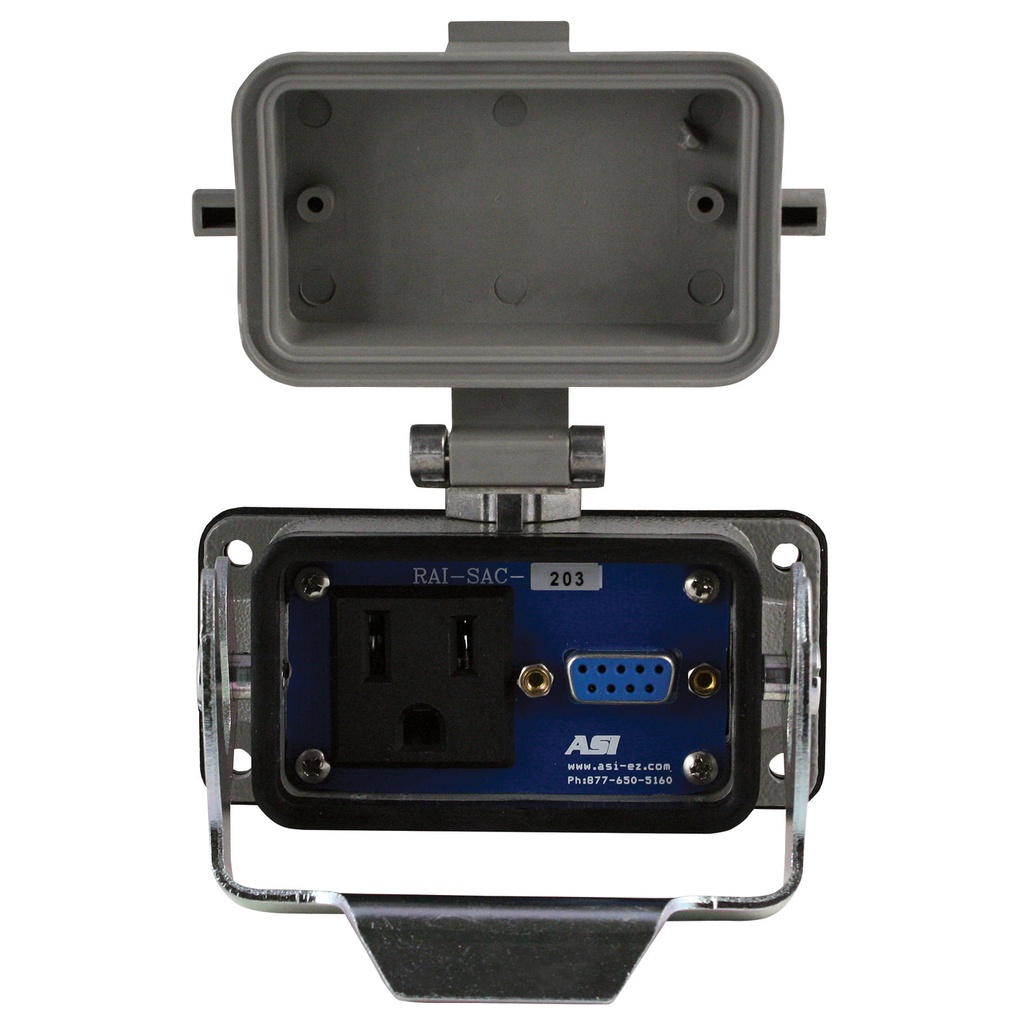

Panel Interface Connector With A DB9 Female Connector And A 120V Single AC Receptacle, RAI-SAC-203

The ASI RAI-SAC-203 is a through panel interface connector consisting of a single UL recognized 120V AC receptacle and a female 9-pin D-sub connector in a robust aluminum connector housing with a locking cover. The 120V outlet and DB9 connector provide an external source for AC power and connectivity near the equipment. The remote access interface or panel interface connector mounts with 4 screws in a cut-out made on the side of a panel. Once mounted, there is a protected gateway between the inside and outside of the panel. The housing is gasketed so that the mounting to the enclosure wall is sealed and when the locking cover is closed and a protection level of NEMA 4, 4X or IP65 is achieved. The internal connections to the remote access interface or panel interface connector are easy to wire after installation. The range of options for ASI Panel Interface Connectors include AC receptacles or outlets, circuit breakers and connectors such as RJ or Ethernet connections, and D-subminiature. RAI-SAC-202 is a through panel interface with a female 9-pin D-subminiature connector and single 15 V AC outlet.
