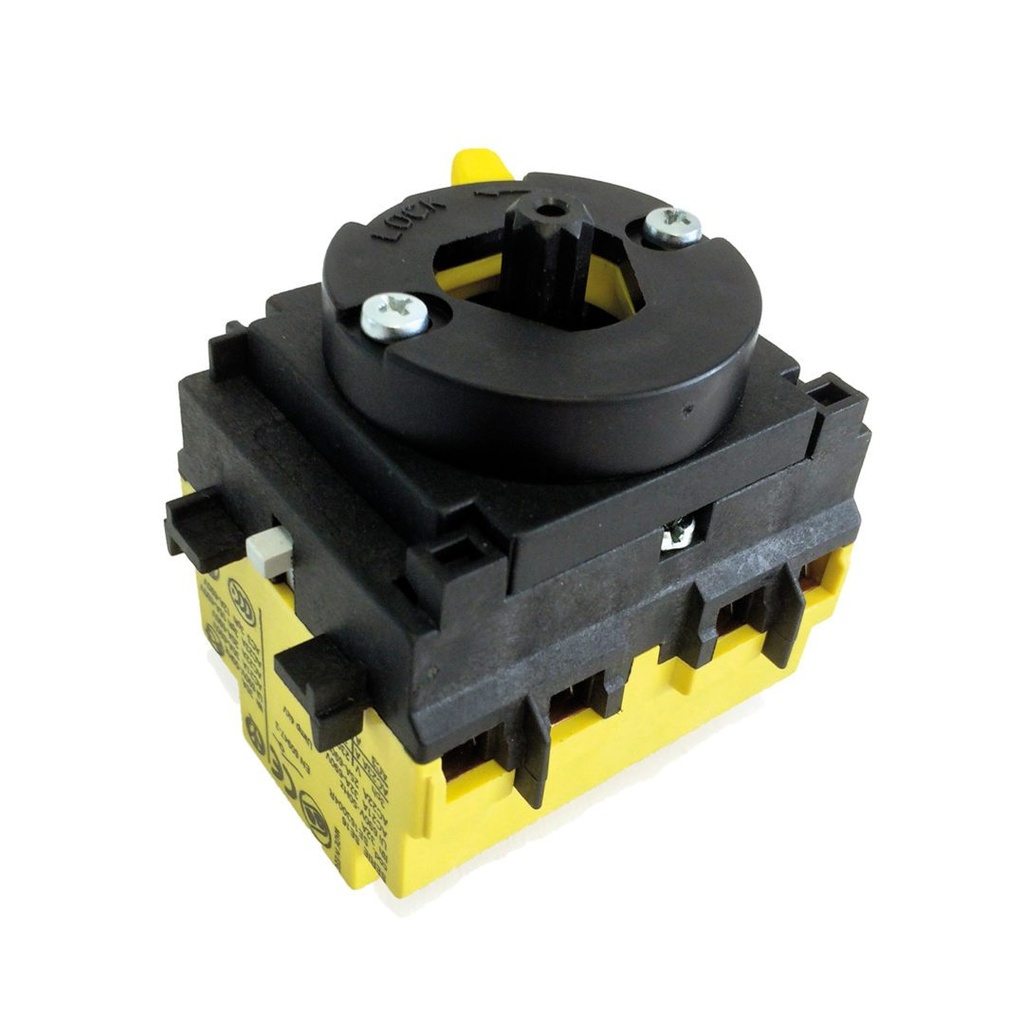

30 Amp Rotary Disconnect Switch, Motor Disconnect Switch Up To 15 HP, 4 Pole, For 22mm Hole Door Mounting, UL508 Listed

The SE163004X is a 30 amp rotary disconnect switch that is design for door mounting through a 22mm hole with quick mount accessories. The SE163004X motor disconnect switch has 4 poles for use as a 3 phase rotary disconnect switch. This rotary disconnect switch is rated for AC-21A applications at 30 amps at 690 volts making it suitable for switching resistive loads with light overloads. This UL508 Listed rotary disconnect switch has a UL rating at 600V of 32A and is also rated for AC-23A applications at 25 amps at 400 volts which is ideal for periodic switching of motors 3 phases. The SE163004X rotary disconnect switch can be used as a motor disconnect switch for motors ranging from 1.5 horsepower to 15 horsepower. Many accessories for this 30A 22mm hole door mounted rotary disconnect switch including handles are sold separately.
