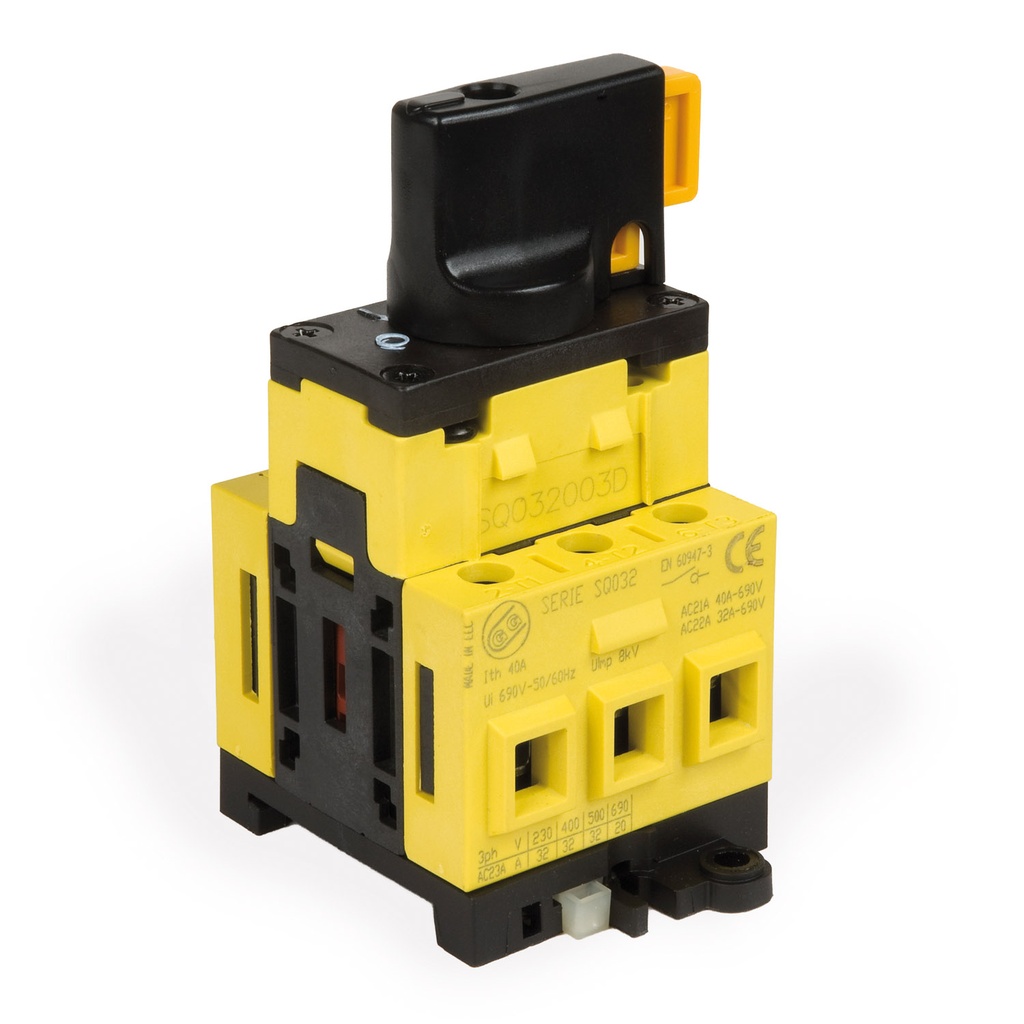

Rotary Disconnect Switch, 32 Amp, 3 Pole With Direct Handle, DIN Rail or Panel Mounting, UL 508 Listed, Suitable as Motor Disconnect

The ASI SQ025003DL1N is a 30 Amp, 3 pole rotary disconnect switch with an attached handle for direct control at the disconnect switch. With a UL508 Listing, it is suitable as a motor disconnect switch up to 15 horsepower. This compact rotary disconnect switch features the option for direct mounting to a panel or quick and easy Snap-On mounting to standard DIN rail. Reliable opening and closing of power circuits are accomplished due to the double break slow opening contacts. The 4th pole with early make contact and auxiliary contacts are optional accessories for this 30A rotary disconnect switch. The easy to wire screw clamp wire terminations on this 30A 3 position rotary disconnect switch is rated for 12 to 8 AWG wire and optional terminal insulators are available. This robust nonfusible 30 amp motor disconnect switch with direct handle has a mechanical life of over 100,000 cycles and has a UL508 general use rating of 600Vac, 32 amps.
