Rotary Disconnect Switch, Motor Disconnect Switch, Door Mounted, 40 Amp, 3 Pole, UL 508 Listed

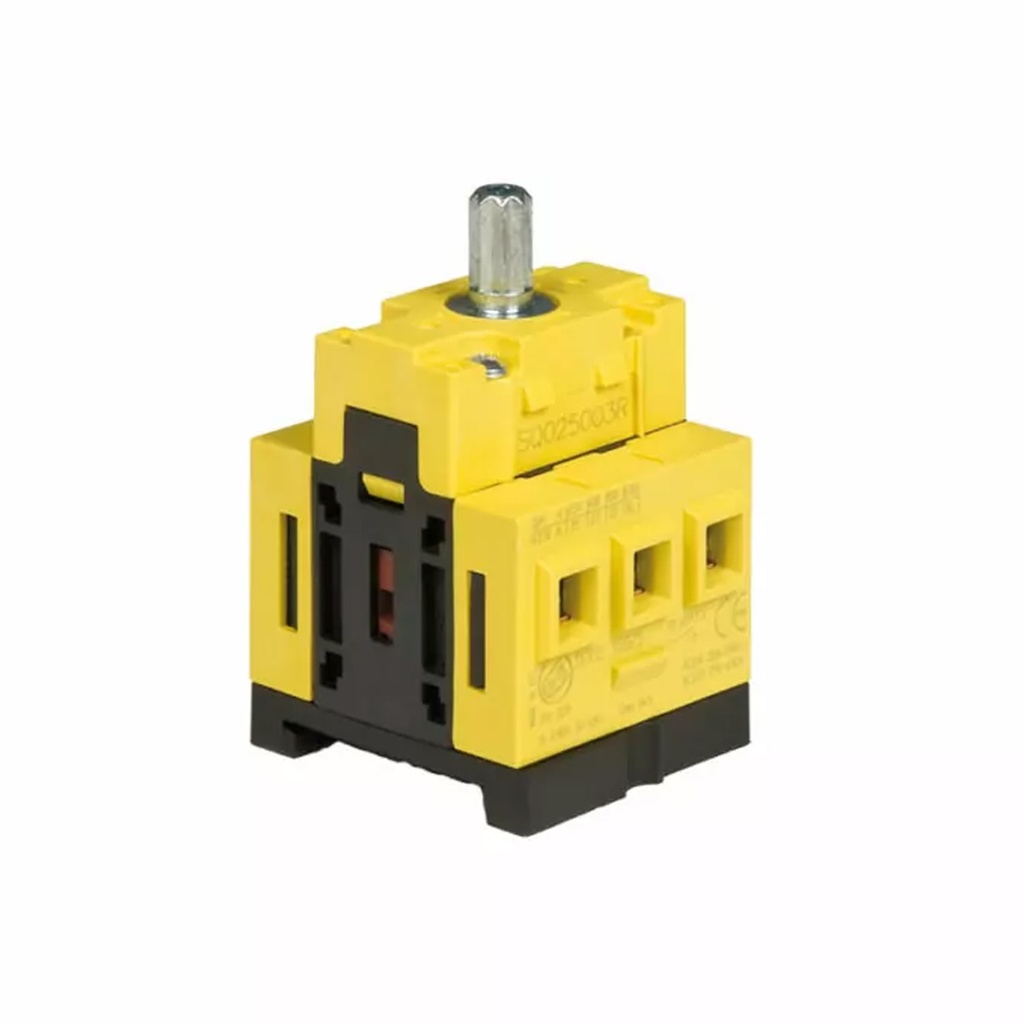

The ASI SQ032003R is a 40 Amp 3 pole rotary disconnect switch that is suitable as a motor disconnect switch up to 20 horsepower. This compact door mounted 3 pole rotary disconnect switch uses double break slow opening contacts to ensure safe and reliable disconnect of power circuits. A 4th pole with early make contact and auxiliary contacts are optional accessories for this 40A rotary disconnect. Several types of actuator handles and knobs are available including models that accept up to 3 padlocks for lockable disconnect switch applications. The easy to wire screw clamp wire terminations on this 40A 3 pole motor disconnect switch is rated for 12 to 8 AWG wire and optional terminal insulators are available. This robust nonfusible 40 amp rotary disconnect switch has a mechanical life of over 100,000 cycles and has a UL508 general use rating of 600Vac, 40 amps.
