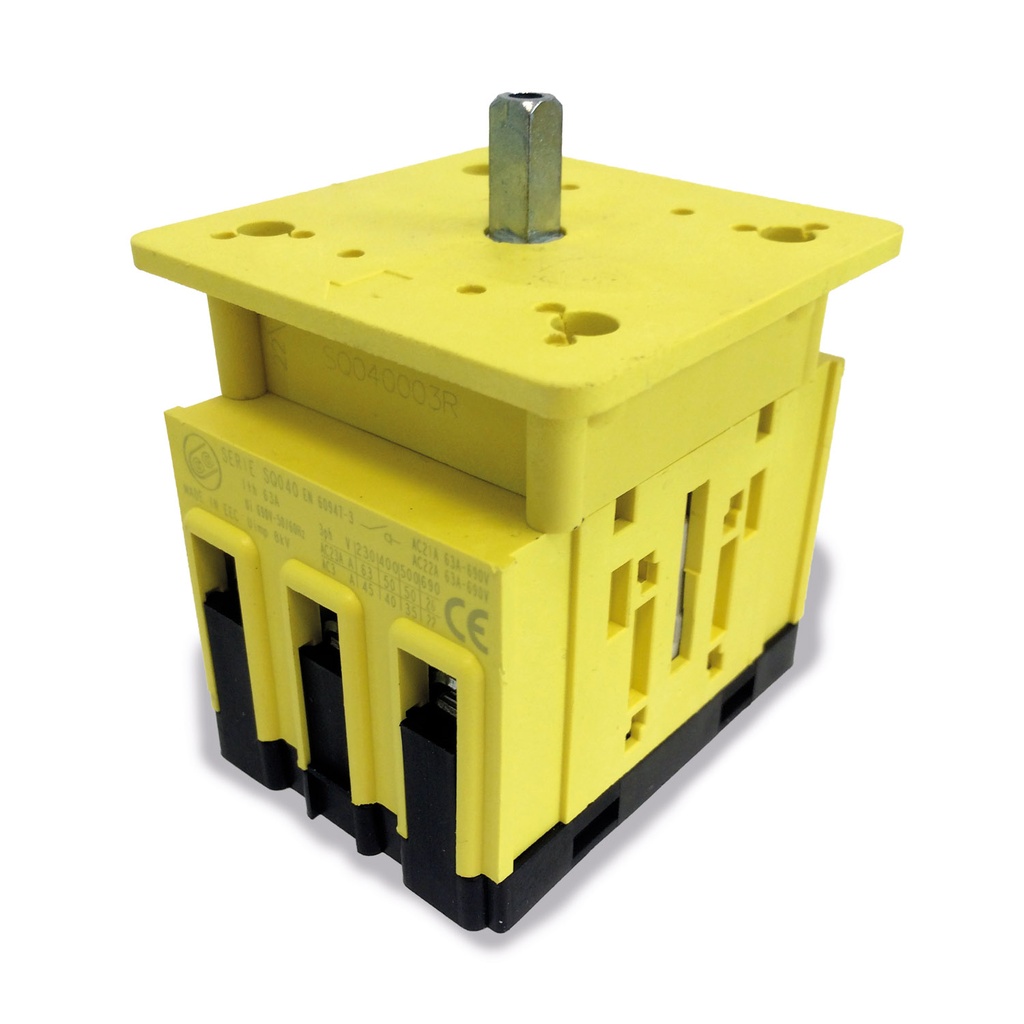

Rotary Disconnect Switch, Motor Disconnect Switch, Door Mounted, 80 Amp, 3 Pole, UL 508 Listed,

The ASI SQ063003R is an 80 Amp 3 pole rotary disconnect switch that is suitable as a motor disconnect switch up to 40 horsepower. This compact door mounted 3 pole rotary disconnect switch uses double break slow opening contacts to ensure safe and reliable disconnect of power circuits. The 4th pole with early make contact and auxiliary contacts are optional accessories for this 80A rotary disconnect switch. Several types of actuator handles and knobs are available including models that accept up to 3 padlocks for lockable disconnect switch applications. The easy to wire screw clamp wire terminations on this 80A 3 pole motor disconnect switch is rated for 10 to 2 AWG wire and optional terminal insulators are available. This robust nonfusible 80 amp rotary disconnect switch has a mechanical life of over 100,000 cycles and has a UL508 general use rating of 600Vac, 80 amps.
