Rotary Disconnect Switch, 80 Amp, 3 Pole, Non Fused, 22mm Hole Door Quick Mount, UL 508 Listed, Motor Disconnect Switch

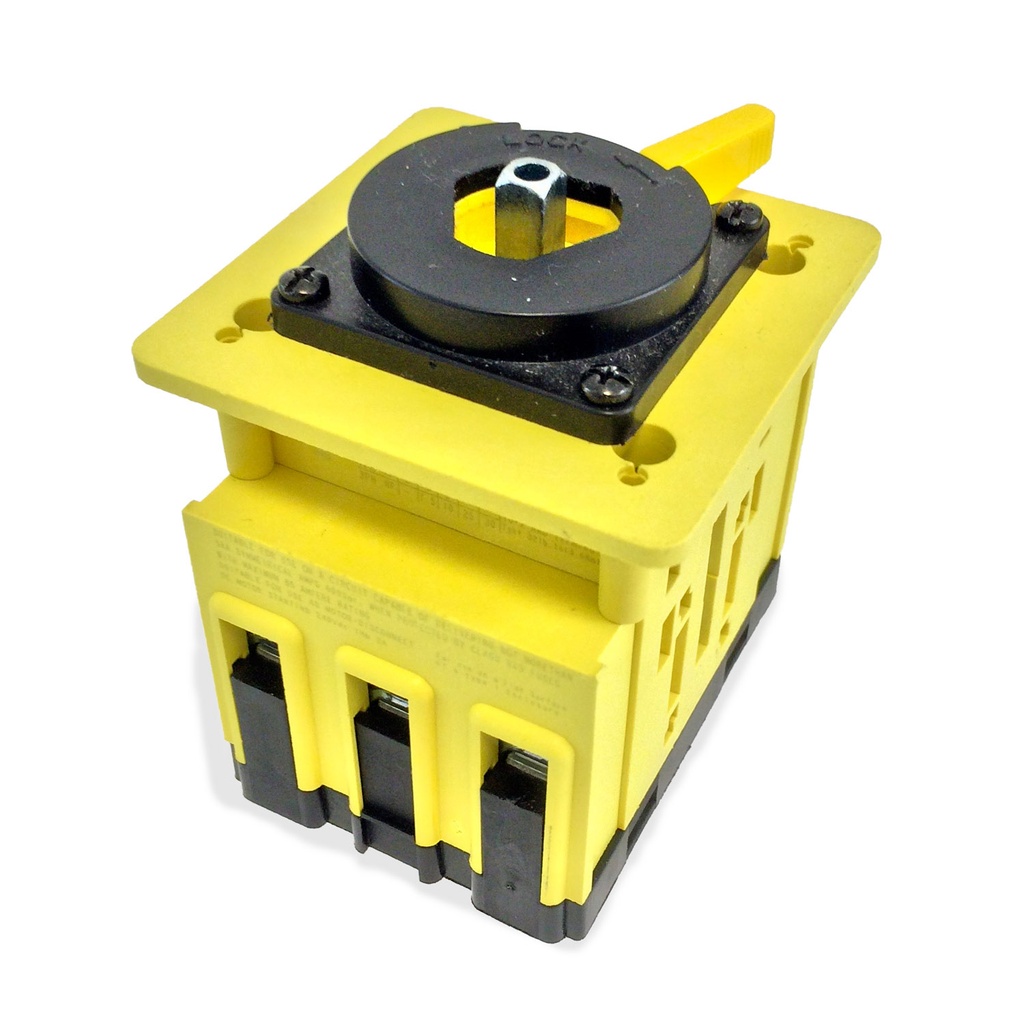

The ASI SQ063003X is a 80 Amp 3 pole door mount rotary disconnect switch that is suitable as a motor disconnect switch up to 40 horsepower. This compact rotary disconnect switch features a unique door mounting through a standard 22mm hole similar to a push button switch. No screws are necessary for mounting as a locking latch support is used for secure assembly of the disconnect switch to the door. Reliable opening and closing of power circuits is accomplished due to the double break slow opening contacts. A 4th pole with early make contact and auxiliary contacts are optional accessories for this 80A rotary disconnect switch. Several types of actuator handles and knobs are available including models that accept up to 3 padlocks for lockable disconnect switch applications. The easy to wire screw clamp wire terminations on this 80A 3 pole motor disconnect switch are rated for 10 to 2 AWG wire and optional terminal insulators are available. This robust nonfusible 80 amp rotary disconnect switch has a mechanical life of over 100,000 cycles and has a UL508 general use rating of 600Vac, 80 amps.
