Programmable RTD Signal Converter, 8 In/3 Out, 24-240Vac, Din Rail

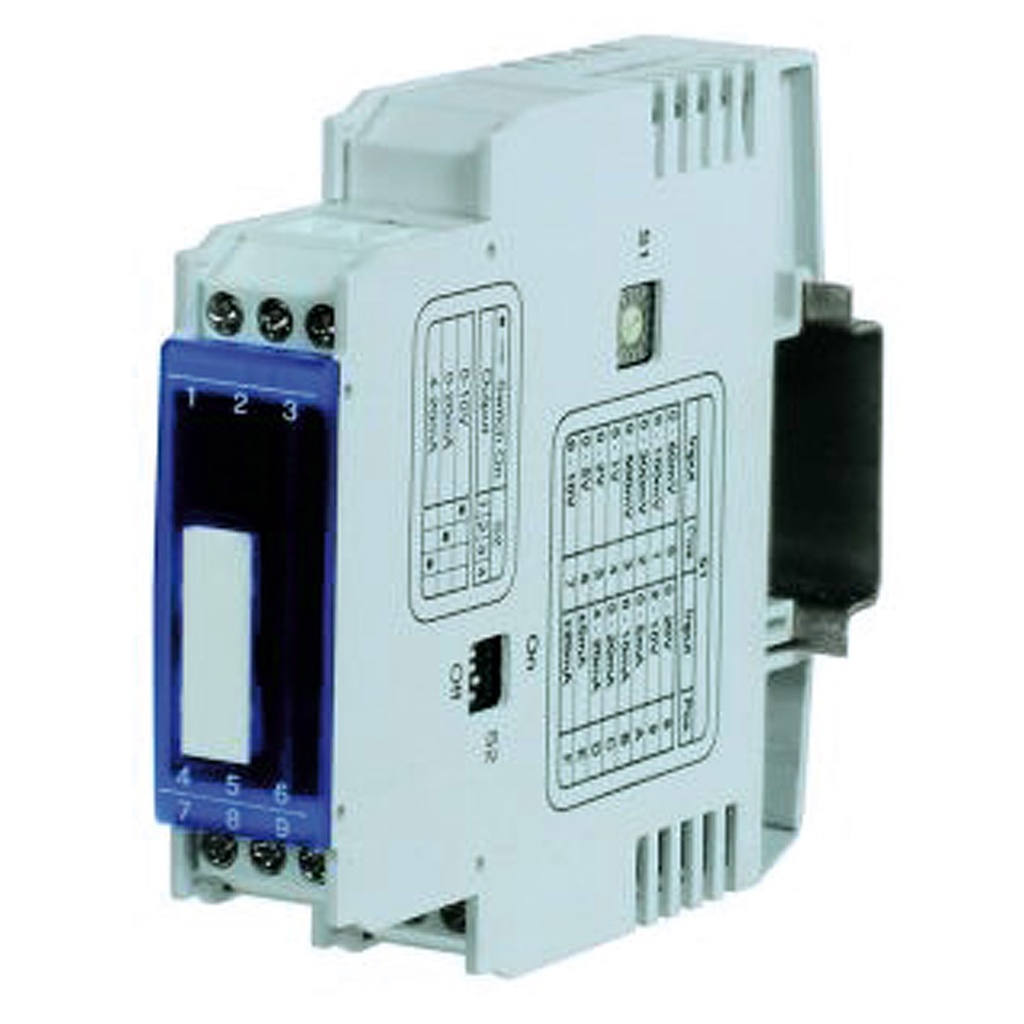

The ASI X756817 is a Resistance Temperature Detector (RTD) sensor conversion module for use with 3 wire or 2 wire PT100 (RTD) sensors. It is powered from a 24 to 240 Vac/dc source. This RTD signal conditioner has 3-way galvanic isolation, 8 programmable temperature ranges and the 3 most common output ranges including 4-20 mA. Programming of the RTD converter module is simple using the DIP switches which can be accessed from the side panel. This module can be used with either isolated or non-isolated sensors and 2-wire sensors which can be connected to the same module using a jumper between terminal 1 and 4. It is UL Listed. The X756817 RTD signal conditioner mounts on standard DIN rail and is sold in packages of 1.
