ASI IMHD26F DIN Rail Breakout Board | 26-Pin Female High-Density D-Sub to Screw Terminal | Secure Mounting | Industrial Interface Module

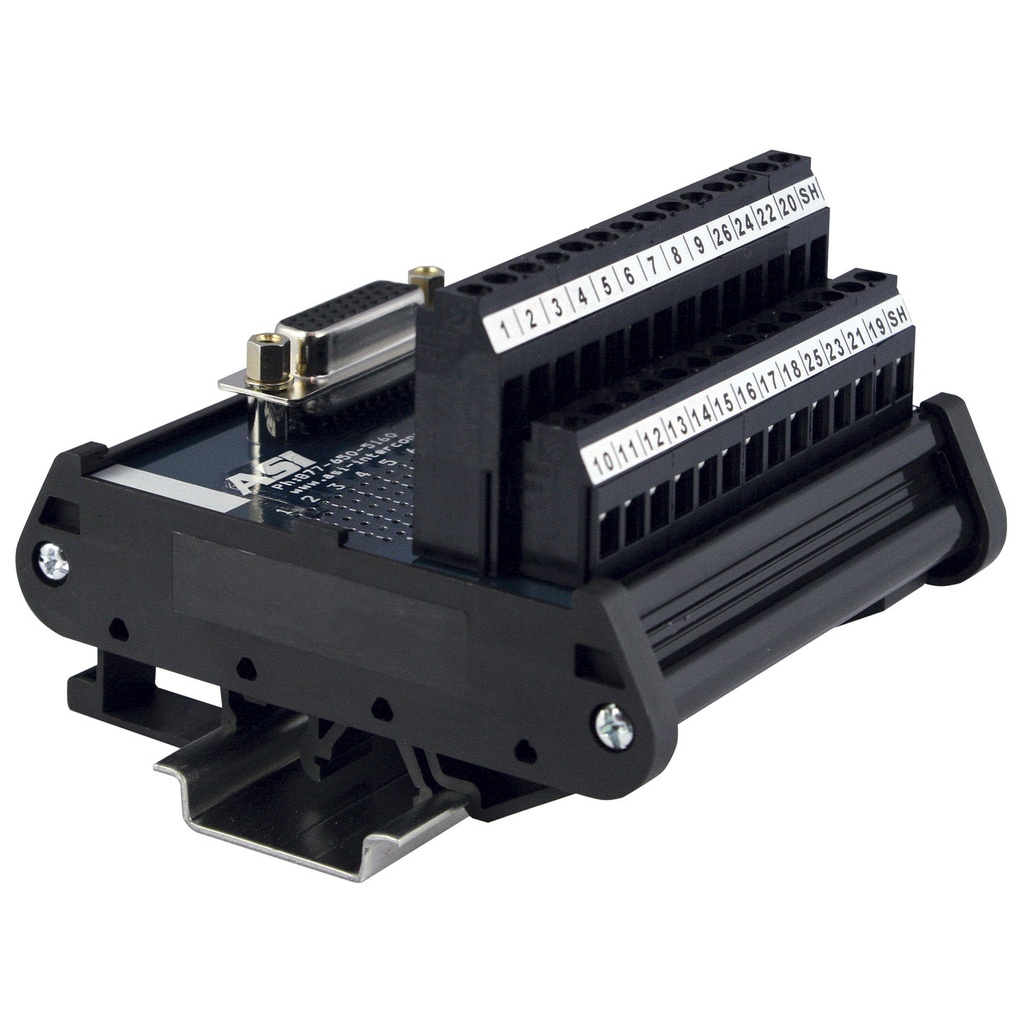

The ASI IMHD26F DIN Rail Breakout Board is a compact, high-density interface module designed for seamless wiring transitions from a 26-pin female high-density D-sub connector to screw terminal blocks. This industrial-grade interface module enables quick and secure connections for control panels, automation systems, and data communication applications.
Featuring a durable PCB with integrated component holes, this breakout board allows for easy mounting of diodes, resistors, and MOVs, making it versatile for signal conditioning, protection, and filtering applications. The D-sub connector includes screw locks, ensuring secure mating in environments with vibration or movement.
For fast and reliable installation, the IMHD26F is equipped with a robust DIN rail mounting foot, designed for firm and stable attachment to standard 35mm DIN rails. This breakout module is ideal for OEMs, panel builders, and system integrators who require efficient wiring solutions for industrial automation and communication networks. Compare to Phoenix Contact® VIP-2/SC/HD26SUB/F, 2322414 and Weidmuller® RS SD26F HD UNC4.40 S, 14281400000.
Key Features & Benefits:
🔹 26-Pin Female High-Density D-Sub to Screw Terminals – Enables quick, tool-free wiring connections
🔹 Secure Screw Lock Connector – Ensures reliable mating even in high-vibration environments
🔹 PCB with Component Holes – Supports easy mounting of diodes, resistors, and MOVs for signal conditioning
🔹 DIN Rail Mountable – Designed for stable installation on standard 35mm DIN rails
🔹 Compact, Space-Saving Design – Optimized for control panels and industrial enclosures
🔹 Durable Industrial-Grade Construction – Built for long-term use in harsh environments
🔹 Ideal for Industrial Automation & Communication Systems – Simplifies signal distribution and integration
Applications:
🔹 Industrial Control Panels & Automation – Facilitates signal routing for PLCs, sensors, and actuators
🔹 Data Communication & Networking – Provides secure connections for high-density D-sub interfaces
🔹 Manufacturing & Process Control – Enables reliable wiring for control cabinets and enclosures
🔹 Signal Conditioning & Protection – Supports custom circuit integration with diodes, resistors, and MOVs
🔹 OEM & System Integration – Ideal for custom industrial interface solutions
Why Choose ASI?
🔹 High-Quality Industrial Interface Solutions – Engineered for automation, communication, and control systems
🔹 Quick & Easy Installation – Screw clamp terminals and secure DIN rail mounting for fast setup
🔹 Reliable & Secure Connections – Designed with screw locks to prevent accidental disconnection
🔹 Durable & Versatile PCB Design – Supports custom component integration for enhanced functionality
🔹 Trusted by Electrical Engineers & OEMs – Used in industrial automation, panel building, and system integration
📦 Order Online Now! Contact us for bulk pricing or OEM customization.
