Terminal Block Relay,120V DIN Rail Relay, 120V Solid State DIN Rail Relay, Pluggable 120V SSR

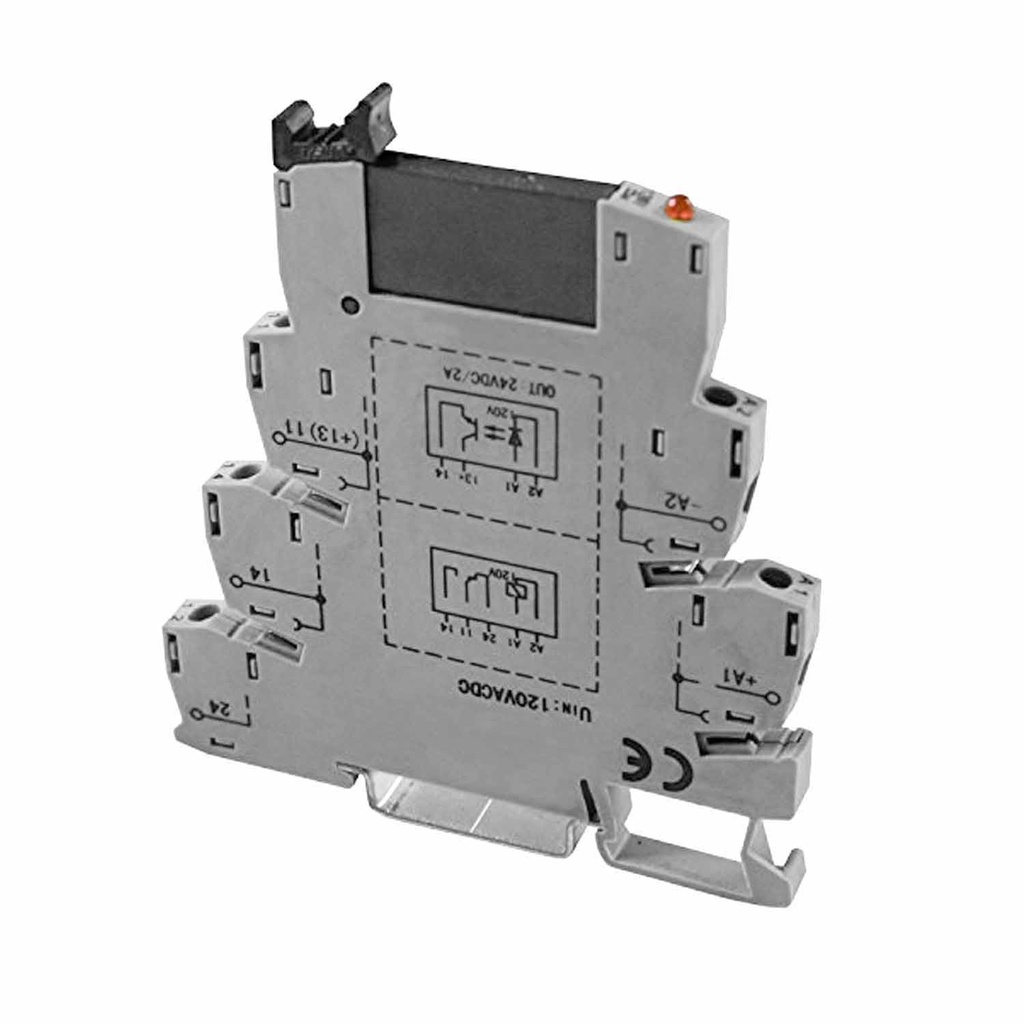

The ASI317007, Type ASIUDK-PLC-O120VACDC is a 120V solid state terminal block relay with a pluggable Solid State Relay relay that has a 120Vac/dc input rating and an output rating of 100 mA, 5 to 48 Vdc. This 120V solid state DIN rail relay is ideal as an isolation relay or interposing relay and saves space in your equipment due to the 6mm width. Features of this solid state interposing terminal block relay include screw clamp wire terminations, a locking actuator to hold in place and remove the 120Vac/dc solid state relay and a LED for visual indication, replacement relays are available. You can compare this 120Vac/dc terminal block relay to Phoenix type PLC-OSC-120UC/48DC/100, part number 2966744. The push in jumpers can be used to save time when inserting a jumper from one 120Vac/dc relay terminal block to another. Since this industrial relay mounts on the standard 35mm DIN rail installation with other DIN rail mounted components is quick and easy. To ensure wiring is correct each 120Vac/dc terminal block relay base has the wiring diagram printed on the side. Snap in markers are available to identify each terminal block relay in your panel.
