Motor Reversing Switch, 3 Phase AC Motor Reversing Switch, Reversing Drum Switch for Electric Motors Up To 50 HP, Rear Panel Mount

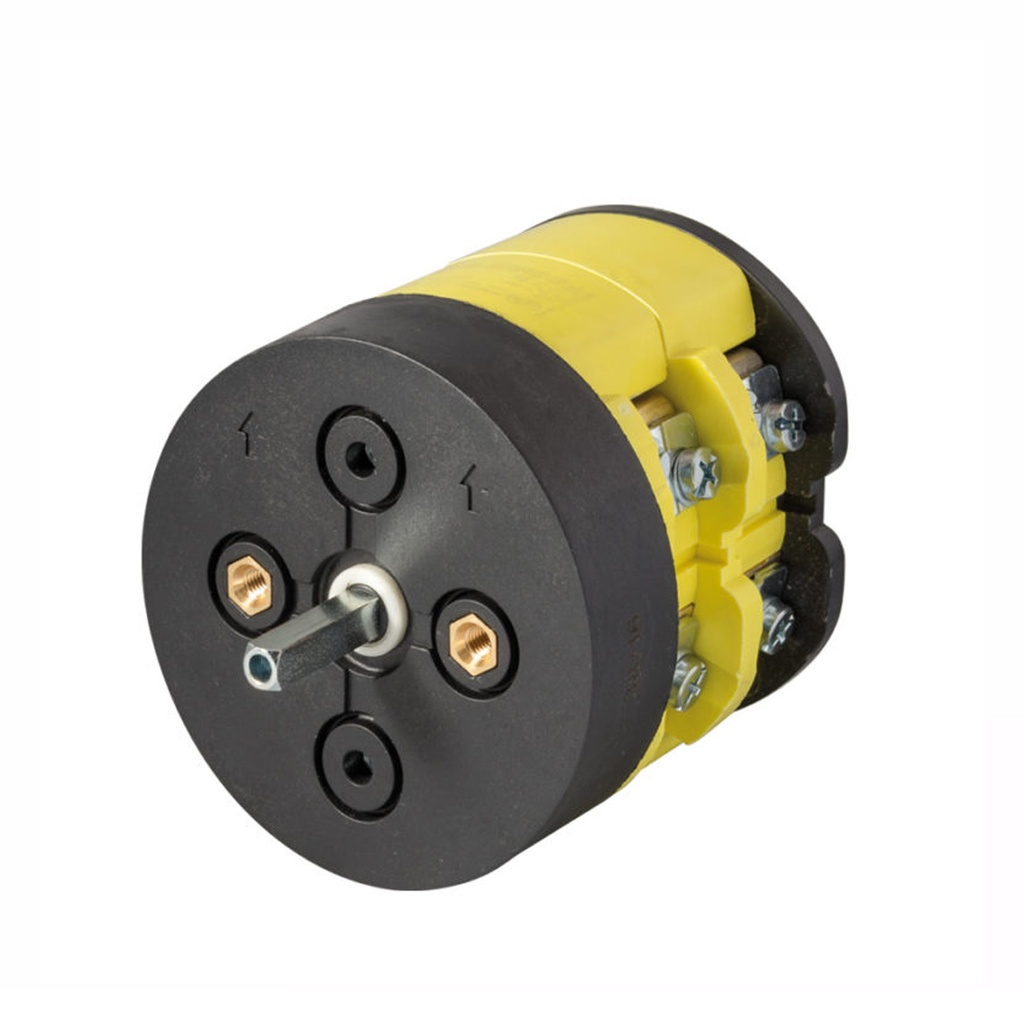

The ASI C0800012R is a rear panel mounted reversing switch or drum switch for 3 phase motors up to 50 horsepower. The ASI C0800012R reversing drum switch has 3 poles and can be used with 208vac, 480vac, and 600vac 3 phase motors. This 3 phase motor reversing switch features self cleaning contacts, silver alloy plating and a UL94V0 thermoplastic housing. With a UL508 listing of 600 Vac, 80A this forward and reverse motor switch is ideal for three phase motors ranging from 20 HP to 50 HP based on voltage. The C0800012R ac motor reversing switch is a compact design to save space and information on wiring and identification are laser engraved into the housing. This robust reversing drum switch is ideal for ac motor reversing in all types of industrial applications. The reversing drum switch wiring diagram can be found under the picture of the drum switch. A wide range of NEMA 4X handles and operators are available for the motor reversing switches including a lockable handle capable of accepting padlocks. Complete drum switch enclosures are available upon request which would include your exact size reversing motor switch mounted in a high impact thermoplastic enclosure and operating handle.
