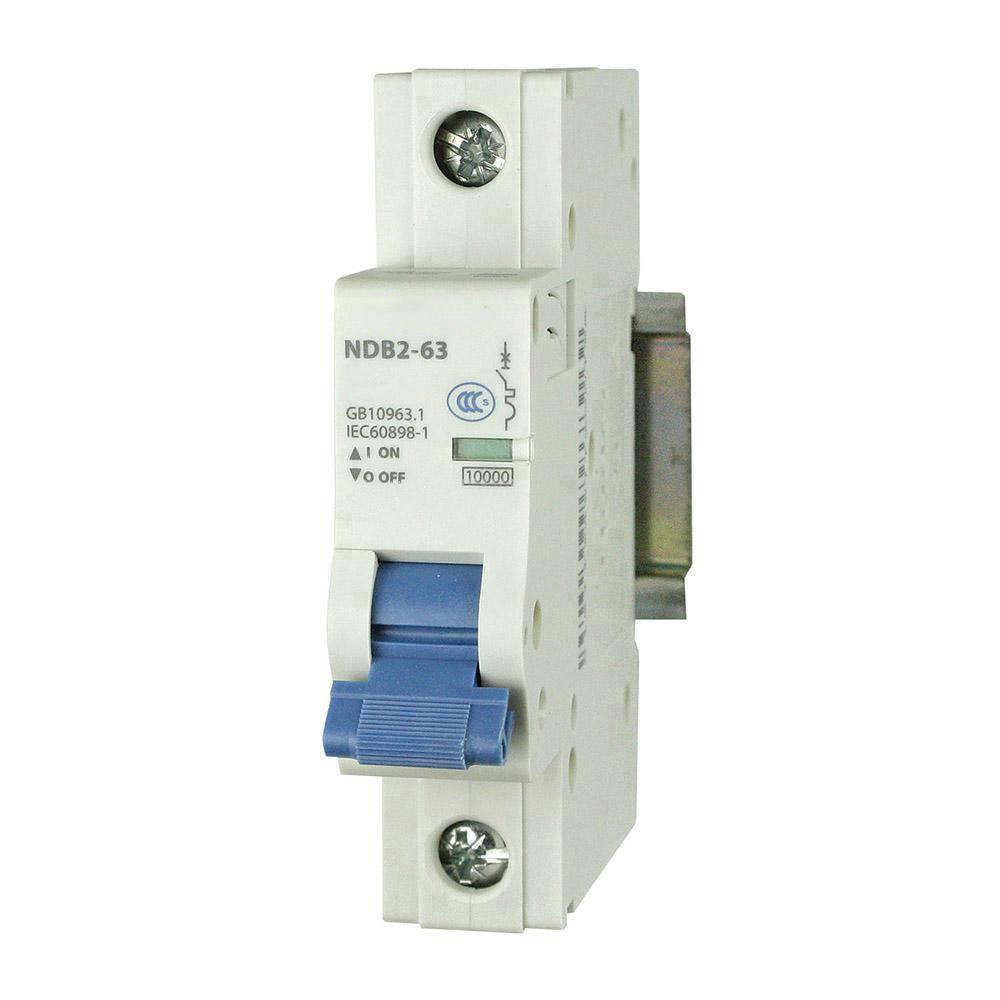

6 Amp, 1 Pole, 240V AC, 60V DC, Trip Curve: D, DIN Rail Mount-Miniature Circuit Breaker, UL1077

https://www.sourceasi.com/web/image/product.template/1453/image_1920?unique=48f8611
SKU: NDB2-63D6-1

ASI NDB2-63D6-1 is a DIN rail circuit breaker, MCB mini circuit breaker, 6 amp MCB, one pole rated for UL1077 supplemental applications. This DIN rail breaker is a thermal magnetic MCB breaker used in 240 V AC and 60 V DC circuits. Features include 18 mm wide foot print, DIN rail mounting, visual LED indication when tripped, D trip curve for highly inductive loads, overload and short circuit protection, easy to wire screw clamp MCB terminations, RoHS compliant, and superior 10kA interrupt capacity. Certificates and standards include UL1077, IEC60898-1, GB 10963.1 and UL1077,TUV, CE, CCC. NDB2-63D6-1 is a 6 amp MCB DIN rail circuit breaker.

In Stock (1)

11.26 11.26 USD 11.26

11.26

Not Available For Sale

/EACH
  • Amperage
  • Poles
  • Trip Curve
  • Breaker Mounting Style
  • UL

This combination does not exist.





Specifications

Amperage 6 Amps
Poles 1
Trip Curve D Trip Curve (Long)
Breaker Mounting Style DIN Rail
UL UL 1077
