Motor Reversing Switch, 3 Phase AC Motor Reversing Switch, Reversing Drum Switch for Electric Motors Up To 7.5 HP, Rear Panel Mount

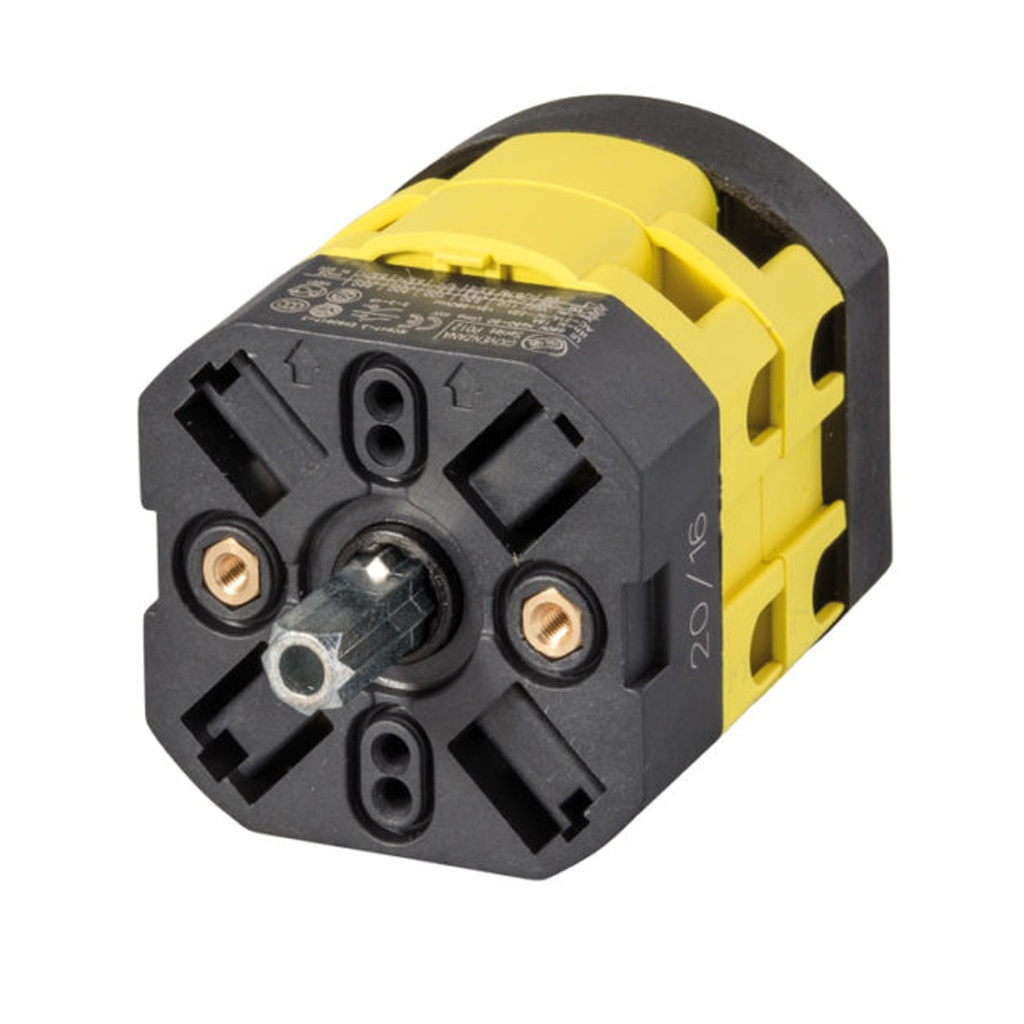

The ASI P0160012R is a rear panel mounted motor reversing switch or reversing drum switch for 3 phase motors up to 7.5 horsepower. The ASI P0160012R reversing drum switch has 3 poles and can be used with 208 Vac, 480 Vac, and 600 Vac 3 phase motors. This 3 phase motor reversing switch features self cleaning contacts, silver alloy plating and a UL94V0 thermoplastic housing. With a UL508 listing of 600 Vac, 16A this forward and reverse motor switch is ideal for three phase motors ranging from 3 HP to 7.5 HP based on voltage. The P0160012R AC motor reversing switch is a compact design to save space, the wire connections are shock hazard proof and information on wiring and identification are laser engraved into the housing. This robust reversing drum switch is ideal for AC motor reversing in all types of industrial applications. The reversing drum switch wiring diagram can be found under the picture of the drum switch. A wide range of NEMA 4X handles and operators are available for the motor reversing switches. Complete drum switch enclosures are available upon request which would include your exact size reversing motor switch mounted in a high impact thermoplastic enclosure and operating handle.
