120/240V AC, 20A, 2HP, Single Phase, Boat Lift Switch or Motor Reversing Switch w/Black Handle (Momentary)

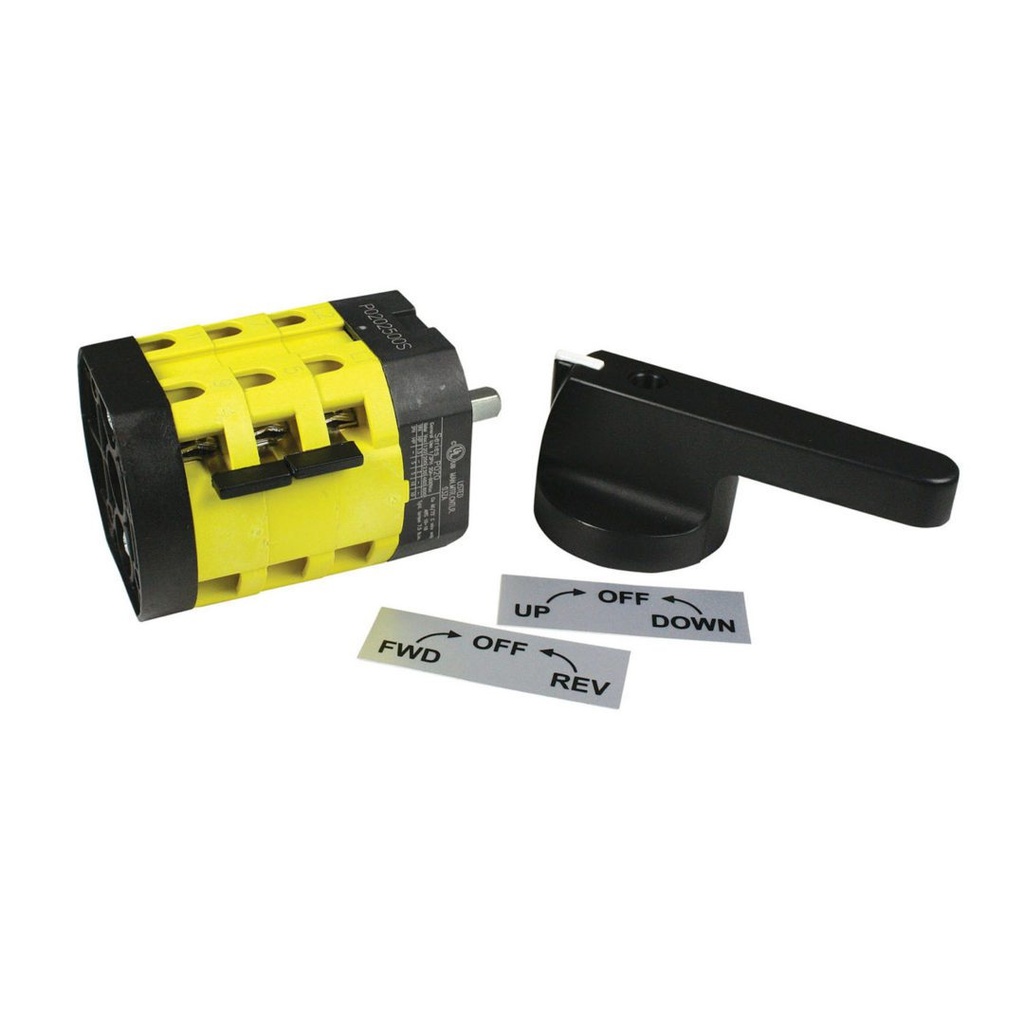

The ASI P0202500S-PKIT is a rear panel mounted momentary motor reversing switch or drum switch which includes an Top Mounted Black Handle. It is used for for 1 phase motors up to 2 horsepower. The ASI P0202500S-PKIT reversing drum switch has 2 poles and can be used with 120 Vac and 240 Vac 1 phase motors. This 1 phase motor reversing switch features self cleaning contacts, silver alloy plating and a UL94V0 thermoplastic housing. With a UL508 listing of 600 Vac, 20A this forward and reverse motor switch is ideal for single phase motors ranging from 0.5 HP to 2 HP based on voltage. The ASI P0202500S-PKIT motor reversing switch is a compact design to save space, the wire connections are shock hazard proof. This robust reversing drum switch is ideal for AC motor reversing in all types of industrial applications. Red Handle available upon request.
