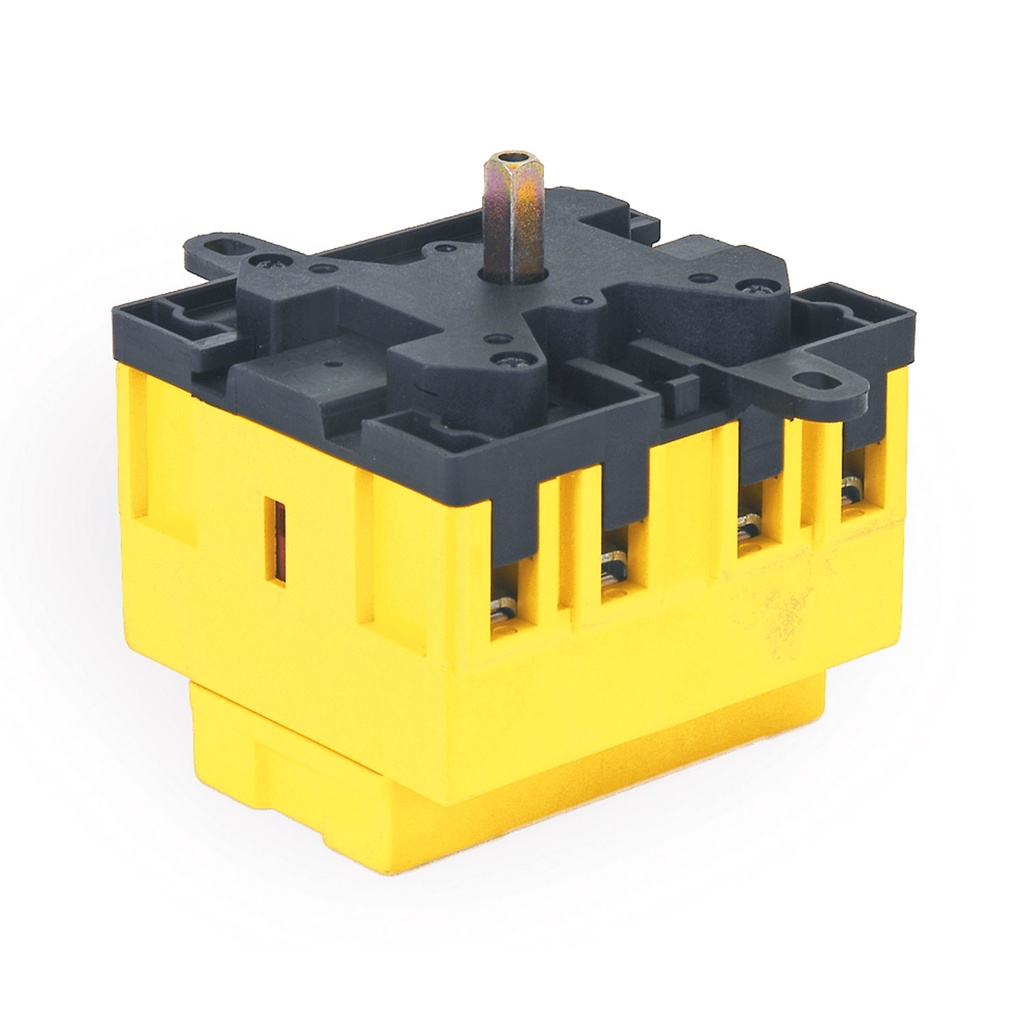

100 Amp Rotary Disconnect Switch, Motor Disconnect Switch Up To 30 HP, 4 Pole, Door Mounted, UL508 Listed

The SE1000004R is a 100 amp rotary disconnect switch that is door mounted, and has 4 poles for use as a 3 phase rotary disconnect switch. This 4 pole rotary disconnect switch is rated for AC-21A applications at 100 amps at 690 volts making it suitable for switching resistive loads with light overloads. This UL508 Listed rotary disconnect switch has a UL rating at 600V of 100A and is also rated for AC-23A applications at 67 amps at 400 volts which is ideal for periodic switching of motors 3 phases. The SE1000004R rotary disconnect switch can be used as a motor disconnect switch for motors ranging from 3 horsepower to 30 horsepower. Many accessories for this 100A door mounted rotary disconnect switch including handles are sold separately.
