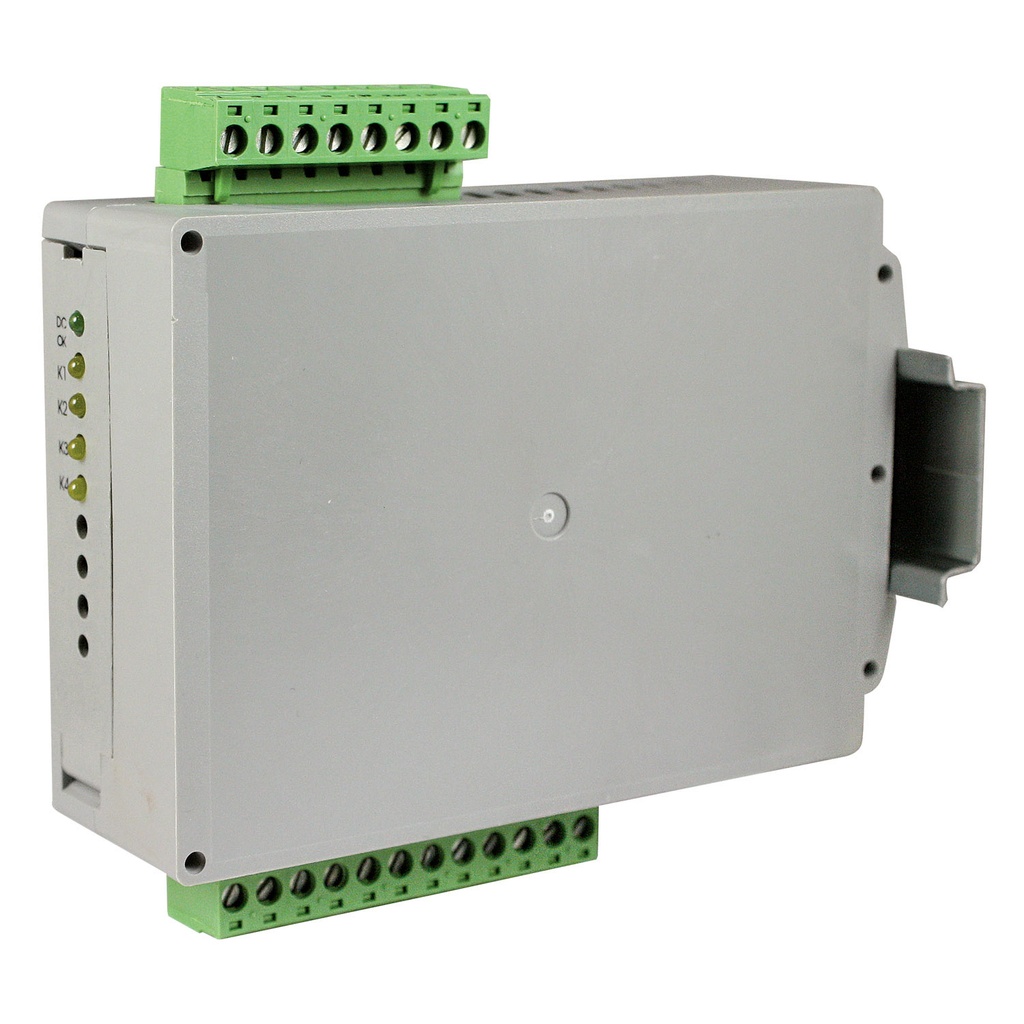

DIN Rail Relay Module With 4 SPDT Relays, 24 Vac/dc, 8 Amp, 240Vac, Space Saving Only 22.5mm Wide,
The ASI XCR41 is space saving DIN Rail mounted 4 Channel Fixed Relay, 24Vac/dc coil rating, SPDT, and the contact rating is 8 Amp at 250 Vac. This enclosed 4 position din rail relay module has pluggable terminal block terminations and snaps onto a DIN rail for easy installation and maintenance. It accepts 26 to 14 AWG wire. This is a very compact DIN rail relay module with 4 relays as it measures only 108x22.5x119 mm [4.3x0.9x4.7 inches]. The DIN rail relay modules are equipped with an inductive kickback diode to prevent damage to sensitive controllers when relays are de-energized. The coils on these din rail relay modules are common together on each relay module to minimize the number of connections and reduce labor and installation cost.
